System interconnection and electrical integration

SP80 can be integrated in the following ways:

  • Direct integration with Renishaw's UCC2-2 controller. This requires the use of a UCC2-2 SP80 daughtercard
  • Using Renishaw's CC6 PCI counter card together with Renishaw's IU80 interpolator unit
  • OEM designed counter card used with Renishaw's IU80 interpolator unit
  • OEM designed counter card and interpolator unit

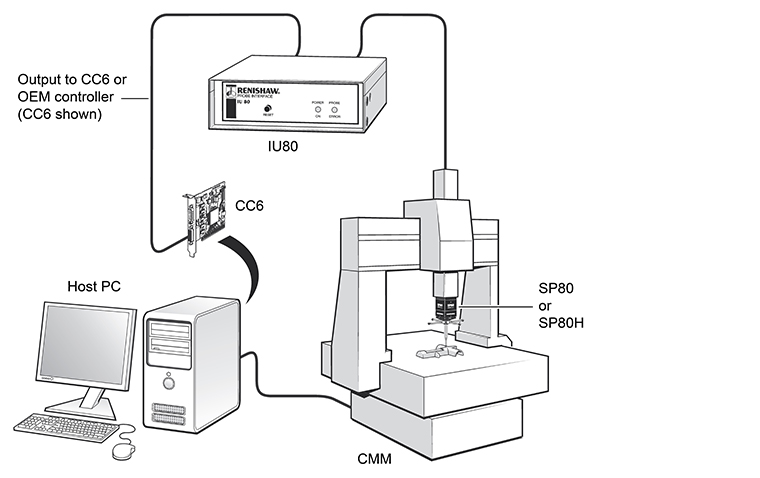

SP80 integration (with IU80 and CC6)

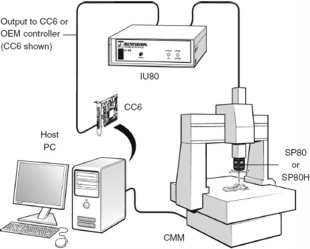

SP80 integration (with IU80 and CC6)
