MCU W-2 manual control unit
MCU W-2 wireless manual control unit for use with Renishaw's range of UCC controllers
- Uses Bluetooth® radio modules
- Maximum of 25 m range
- Minimum eight hours between battery changes

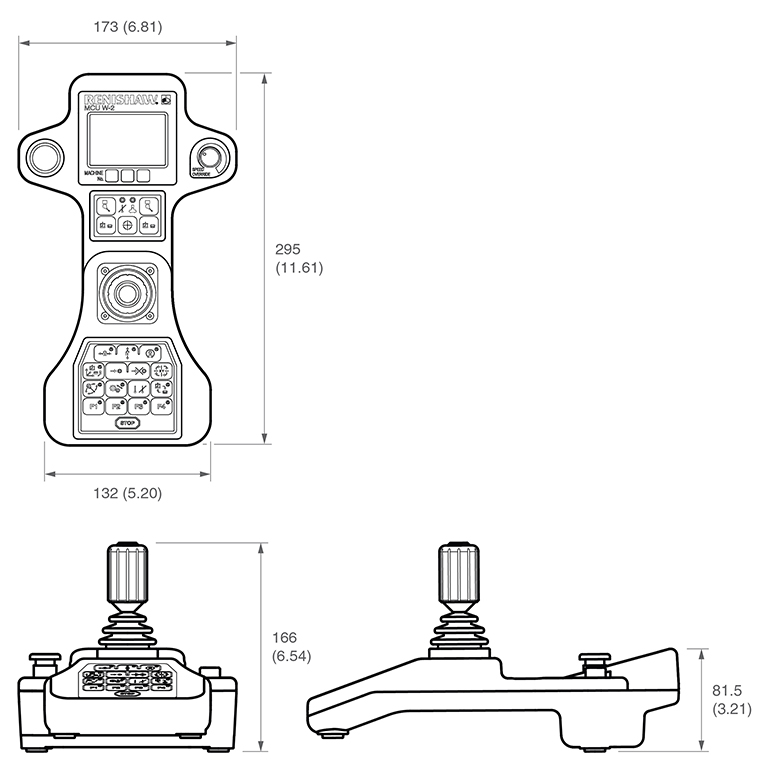

Dimensions
NOTE: Dimensions in mm (in).

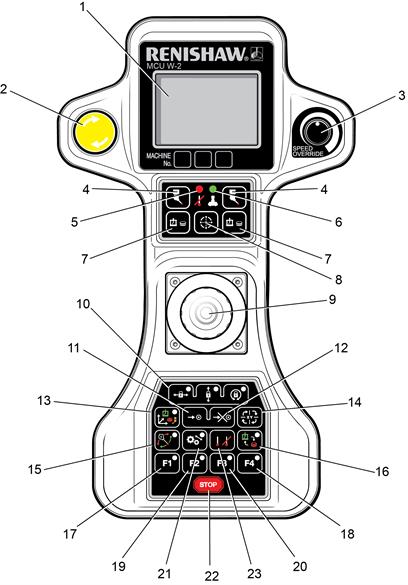

| Key | Description |
|---|---|
| 1 | LCD screen |
| 2 | Stop switch |
| 3 | Speed override |
| 4 | Joystick enabled head mode (see '6' and '15') |
| 5 | Probe disabled LED |
| 6 | Joystick enabled LED |
| 7 | Joystick control of CMM or rotary table (see '6' and '16') |
| 8 | Bore teach |
| 9 | 3-axis joystick with push button |
| 10 | Joystick locks (three separate buttons) |
| 11 | Take point |
| 12 | Cancel point |
| 13 | Joystick co-ordinate system (axis select) |
| 14 | Joystick orientation |
| 15 | Switch between orbital mode and head mode |
| 16 | CMM movement or rotary table |
| 17 | F1 function |
| 18 | F4 function |
| 19 | F2 function |
| 20 | F3 function |
| 21 | Engage servos |
| 22 | Stop |
| 23 | Probe disabled (see ‘5') |
| Part number | |
| MCUlite-2 joystick kit | A-5331-0015 |
| MCU5-2 joystick kit | A-5734-0100 |
| MCU W-2 joystick kit (no batteries included) | A-5734-1200 |
| MCU W battery × 2 | A-5381-0095 |
