TP1(S) legacy probe

TP1(S) probe

  • TP1SRobust kinematic probe ideal for manual CMMs
  • Large overtravel range
  • Large adjustable trigger force range
  • Shank mounted
  • External cable

Technical specification

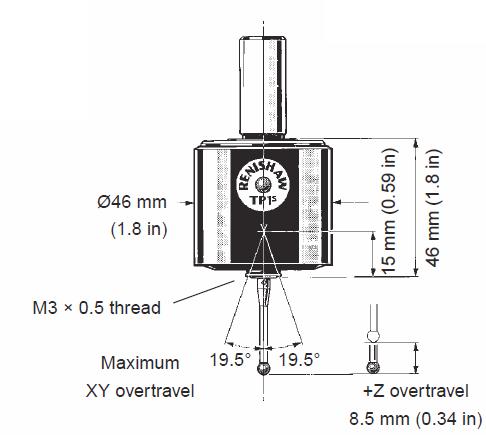

Dimensions

TP1_dimensioned_dwg

Specification

Principal application

Manual CMMs

Sense directions

5-axis: ±X, ±Y, +Z

Unidirectional repeatability maximum (2σ μm) (at stylus tip)

0.5 μm (0.00002 in)

Pre-travel variation 360° (XY plane)

±2 μm (0.00008 in)

Weight *excluding shank and cable

128 g* (4.52 oz*)

Stylus range

M3

Stylus force range (adjustable)

0.1 N - 0.5 N

Stylus force (set by Renishaw)

0.15 N

Stylus overtravel (typical)
XY plane +Z axis

±19.5°
8.5 mm (0.34 in) @ 0.1 N
5 mm (0.2 in) @ 0.5 N

Maximum extension on PH10 series

N/A

Mounting method

Shank to suit machine

Suitable interface

PI 7-3, PI 200-3, UCC

Above data applies to test conditions as follows:

  • Stylus length 31 mm (1.22 in)
  • Stylus velocity 480 mm/min (1.57 ft/min)
  • Stylus force 0.15 N

Installation and user's guides

  • User's guide: Touch-trigger probe systems

    TP1(S) - A robust shank-mounted probe offering generous overtravel, ideally suited to manual CMMs. TP2 5-way - A compact probe allowing component penetration, ideally suited to CNC/DCC machines. TP6 - Complementing the TP2 series, but carrying longer and heavier styli, this probe is suited to general purpose applications. TP6A - This probe has all the functions of the TP6 probe and in addition the patented Renishaw autojoint that permits fast probe exchange without the need to requalify.

    [541kB]

DescriptionPart number
  TP1 (S) probe (includes required shank see below for complete part number)  A-1041-7***
  TP1 (SM) probe (includes required shank see below for complete part number)  A-1041-7***



 MS1MS2MS3MS4MS5MS6MS7MS8MS9MS10MS11MS12MS13MS14MS15MS17

 TP1S



 A-
1041-

7555

7547

7551

7553



7548

7549

7552

7560



7546



7563

7561

7556

7126

TP1(SM)



A-
1041-

7662

7663



7661
