PHS1 dimensions

The dimensions of the PHS1 servo positioning head are shown below.  All dimensions are in millimetres.

The two coloured LEDs serve particular functions.

  • The green LED indicates 24 V power is being supplied to the probe head
  • The red LEDs are positioned on each face of the overtravel cap and flash when the probe is triggered

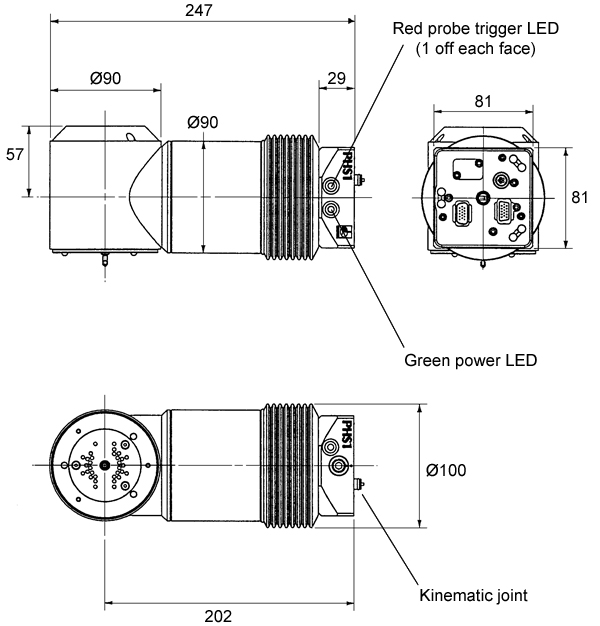

PHS1 probe head dimensions:

PHS1 probe head dimensions
