Valve seat inspection

REVO™ valve seat and guide measurement and analysis
REVO valve seat measurement

The measurement of valve seats and guides has traditionally been very challenging, involving time-consuming methods that are often a compromise and not capable for the task.

REVO technology changes this situation dramatically, making it possible to collect large amounts of data very quickly, from which the analysis parameters for both the valve seat and the valve guide features can be calculated. The method performs exceptionally well in repeatability and reproducibility tests.

Data evaluation

The valve seat and guide analysis utility that is embedded in Renishaw's MODUS metrology software is utilised to evaluate the scan data and return data regarding the attributes listed below:-

  • Form error of the valve seat
  • Circularity profile of the seat at any specified height
  • Valve seat width
  • Runout of the seat to the guide bore axis
  • Diameter of the guide
  • Straightness of the guide cylinder
  • Cylindricity of the guide
  • Circularity profile of the guide cylinder at any specified height
  • Form errors of the cones, above and below the valve seat cone

The two types of scanning used to inspect valve seats and guides are...

Helical scans

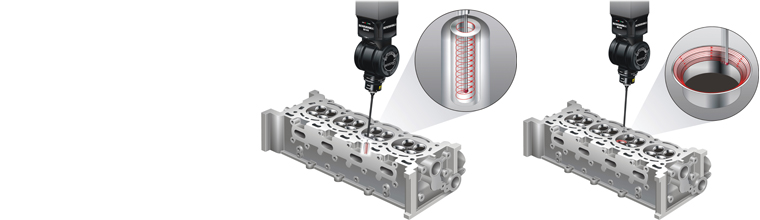

The measurement process involves two helical scans, one on the valve guide bore and the second over the valve seat area.

On the guide a single helical scan is used with a typical pitch of 0.5 mm, at a scanning speed of 150 mm/s.

Adaptive scanning

This valve seat scan utilises REVO's adaptive scanning capability, which allows a single scan command to cover the areas above and below the critical valve seat surfaces.

On the valve seat a single helical scan is also used, with a typical pitch of 0.1 mm, at a scanning speed of 500 mm/s.

THE DATA COLLECTION PROCESS TAKES APPROXIMATELY 20 SECONDS!
