REVO-2 head

The REVO-2 measuring head provides the basis of the 5-axis multi-sensor measurement system

  • Knowledgebase top level image - REVO-2Laser measurement and electrical signal transmission technology for precise work piece measurement at extremely high rates of data capture
  • Multi-sensor capability for optimum probe selection, with all data being in the same co-ordinate reference frame
  • 5-axis control system removes unwanted dynamic errors associated with machine movement - the measuring head performs most of the work
  • Quickly follows changes in the part geometry without introducing large dynamic errors

Dimensions

REVO-2 - dimensions

NOTE: Dimensions in mm (in).

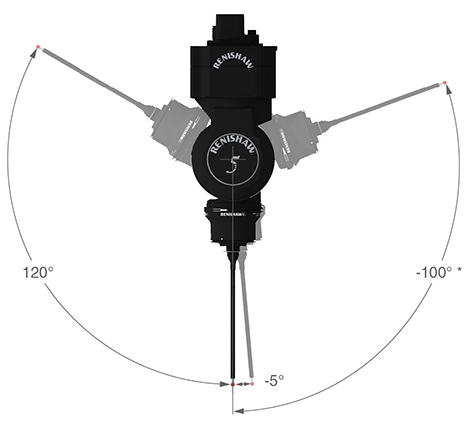

Limits of rotation

REVO-2 limits of rotation

* NOTE: This movement is for calibration and use of RSP3 probes only.

Specification


Operating temperature+10 °C to +40 °C (+50 °F to +104 °F)
Storage temperature-25 °C to +70 °C (-13 °F to +158 °F)
Weight (excluding probe and cables)2.1 kg (4 lb 10 oz)
Height (overall)176.5 mm (6.95 in). Quill to probe mount, including 4 mm mounting plate
B-axis92 mm × 93.5 mm (3.62 in × 3.68 in)
A-axis swept diameter116 mm (4.56 in)
Movement speed3 revs/sec
A-axis rotation angle

-5° to +120° (for measurement with RSP2 and RVP)

-100° to +120° (used for calibration and measurement with RSP3 and SFP1)

B-axis rotation angleContinuous
Angular resolution0.02 arc sec (0.01 µm / 100 mm)
Bearings

Air - consumption rate up to 35 l/min (5 bar to 8.5 bar)

(Refer to user's guide for detail)

Change rack system

RCP TC-# for probe changing / RCP for stylus changing; VPCP and VMCP for vision system

MountingQuill mounting in the vertical orientation only (adaptor may be required)

NOTE: RSP3-6 is XYZ touch and XY scan only.


Part number

REVO-2 5-axis scanning system kits

REVO-2 entry kit (includes 1 × REVO-2 head kit, 1 × RSP2 V2 probe, 1 × RSH250 kit, 1 × datum ball kit)

A-5518-1095

REVO-2 S5 controller kit (including 1 UCC S5, 1 SPA3 amp, 1 REVO air filer assembly, 1 REVO 6 mm air pipe, 1 UCC T3 connector kit, 1 MCU5-2 joystick, 1 PSU)

A-5518-0096

REVO-2 S5 controller kit (including 1 UCC S5, 1 SPA3 amp, 1 REVO air filer assembly, 1 REVO 6 mm air pipe, 1 UCC T3 connector kit, 1 MCU W-2 joystick, MCU W battery pack (2 batteries), 1 PSU)

A-5518-0098

NOTE: Please visit the REVO system for a full list of REVO-2 system and associated product part numbers.
