RSP3

The RSP3 range of probes gives REVO-2 users the ability to carry cranked stylus arrangements and enhanced capability for carrying long styli.
The RSP3-1 / 2 / 3 / 4 probes can be used for both 3D-scanning (X, Y, Z) and touch-trigger applications. They enable accurate scanning measurement with effective stylus lengths ranging from 20 mm - 394 mm. The RSP3-6 probe, on the other hand, provides REVO-2 with enhanced capability for carrying long cranked and straight styli. RSP3-6 can be used for 2D scanning and 3D touch-trigger applications. It carries straight extensions up to 800 mm from REVO-2's A-axis centre of rotation, and cranked extensions up to 600 mm from REVO-2's A-axis centre of rotation.

The RSP3 range uses 3-axis scanning with fixed REVO-2 head angles during measurement. Each probe is designed to provide optimized accuracy and contact force over a specified stylus range. Consequently, the RSH3 stylus holders are intended to fit only with their respective RSP3 probe.

Design principles of the RSP3 scanning probes

RSP3 uses an optical transducer sensor and a pivoting motion system similar to that found in SP25M system.

The probe's pivoting motion system has two diaphragm springs. One of the RSP3 springs allows movement in all directions whilst the other (pivot) spring is stiff in (probe) X and Y, but allows movement in Z. Its optical transducer sensor system has two infrared light emitting diodes that project invisible infrared beams on mirrors mounted on the pivoting moving structure within the probe. The mirrors focus the beams back onto two position sensitive devices (PSDs) which provide signal outputs in the three probe axes: p,q,r (converted into X, Y, Z signals by the calibration routine).

Unlike the SP25M, the RSP3's probe and module elements are built as one.

RSP3 family

RSP3-# changing system

The RCP TC-2 (thermally controlled REVO-2 change port) is used for changing RSP3-1 / 2 / 3 / 4. RCP TC-3 is used for changing RSP3-6. The FCR25 (flexible change rack) is configured to change SH25-# or the newer RSH3-# stylus holders. RSH3-6# stylus holders should be changed using RCP2.

RSP3-1 / 2 / 3 / 4

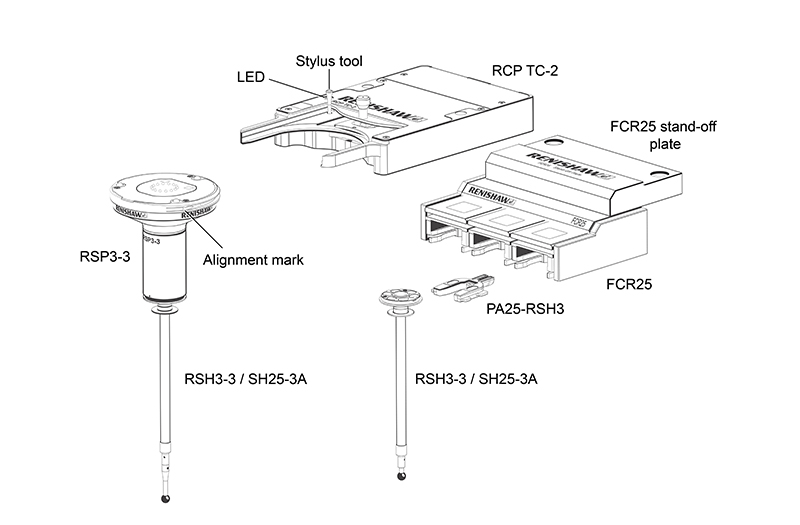

RSP3-3 with RCP TC-2 and FCR25

NOTE: Please observe the orientation of the probe in the RCP TC-2.

The stylus tool is used to keep the port lid open during calibration. It must be removed for normal operation.

RSP3-6

RCP TC-3 with RSP3-6 and RCP2 with stylus holder

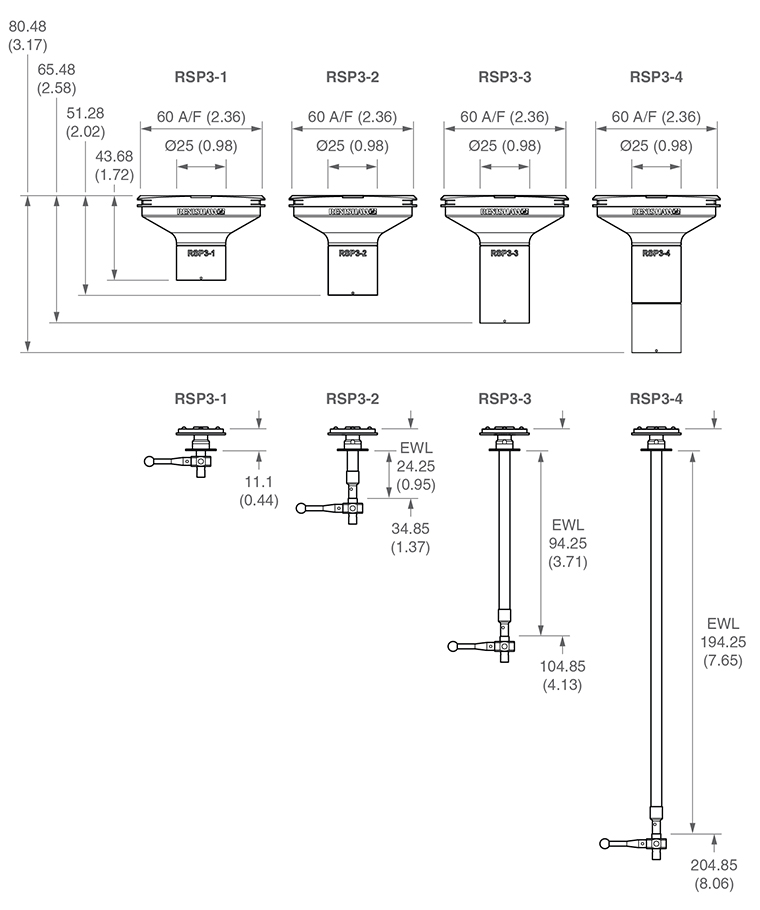

Dimensions

Dimensions in mm

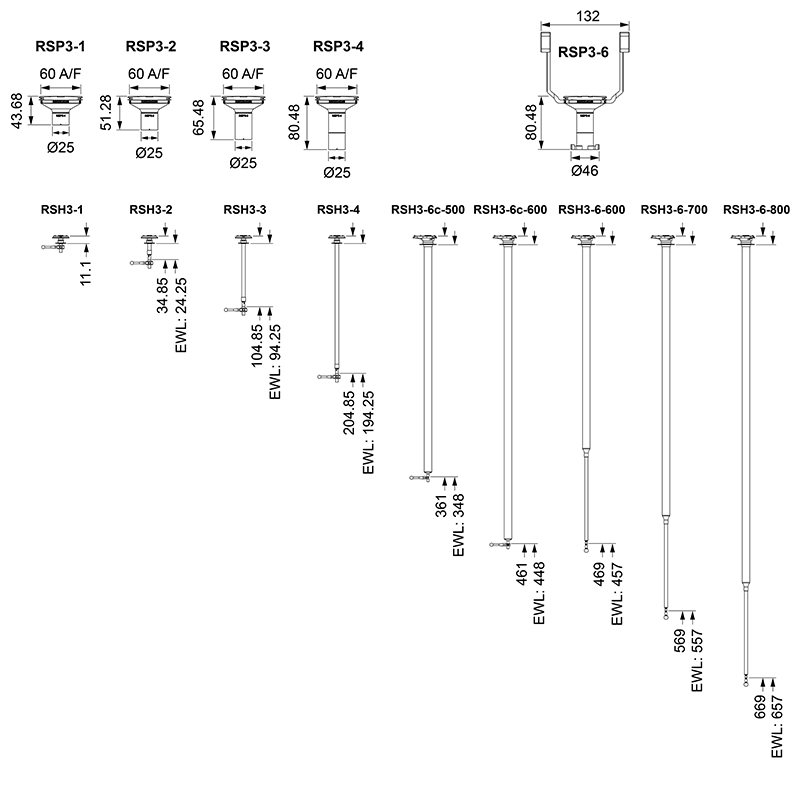

RSP3 dimensions

When RSH3-3 is used with a 25 mm long cranked stylus, the use of a 20 mm extension is recommended as it balances the spring rates (X, Y and Z) of the probe and results in better metrology.

RSP3-1 / 2 / 3 / 4

Characteristic

Requirements

Probe attributes

Scanning with 3-axis measurement (X, Y, Z) and 3-axis touch-trigger

Measurement range

±0.5 mm deflection in all directions in all orientations

Overtravel range

X, Y

2 mm

+Z

1.7 mm

-Z

1.2 mm

Resolution

Capable of <0.1 μm

Spring rate

Nominally 0.6 N/mm - when using shortest specified stylus

Nominally 0.2 N/mm - when using longest specified stylus

Weight

RSP3-1

86 g (3.03 oz) (excluding stylus holder and stylus)

RSP3-2

90 g (3.17 oz) (excluding stylus holder and stylus)

RSP3-3

94 g (3.32 oz) (excluding stylus holder and stylus)

RSP3-4

101 g (3.56 oz) (excluding stylus holder and stylus)

Effective stylus length range

Always observe the specified stylus range for the scanning module being used. Use Renishaw's M3 range of styli.

RSP3-1 + RSH3-1

EWL 20 mm - 50 mm (0.79 in - 1.97 in) using 20 mm - 50 mm stylus

RSP3-2 + RSH3-2

EWL 44 mm - 99 mm (1.73 in - 3.90 in) using 20 mm - 75 mm stylus

RSP3-3 + RSH3-3

EWL 114 mm - 194 mm (4.49 in - 7.64 in) using 20 mm - 100 mm stylus

RSP3-4 + RSH3-4

EWL 214 mm - 394 mm (7.64 in - 15.51 in) using 20 mm - 200 mm stylus

Mounting

Magnetised kinematic coupling

Crash protection

±X, ±Y, -Z

Via break out of probe or stylus holder

+Z

Via integral bump-stop design

Signal outputs

Non-linear and non-orthogonal analogue outputs - rate gain and resolution are not fixed

Change rack options

RCP TC-2

Thermally controlled change port for probe changing only

This single port unit mounts on the MRS / MRS2 rack

FCR25 with FCR25 front spacer kit

Triple port unit which mounts on the MRS / MRS2 rack

Interface options

UCC S5

RSP3-6

Characteristic

Requirements

Probe attributes

2-axis scanning (X,Y) and 3-axis touch-trigger (X,Y,Z)

Measurement range

±0.5 mm deflection in all directions in all orientations

Overtravel range

X, Y

2 mm

+Z

1.7 mm

-Z

1.2 mm

Resolution

Capable of <0.1 μm

Weight

300 g (10.58 oz) (excluding stylus holder and stylus)

Effective stylus length range

RSP3-6 + RSH3-6c-500

EWL 348 mm (13.70 in) using M2 star centre

RSP3-6 + RSH3-6c-600

EWL 448 mm (17.64 in) using M2 star centre

RSP3-6 + RSH3-6-600

EWL 456 mm (17.95 in) using 10 mm stylus

RSP3-6 + RSH3-6-700

EWL 556 mm (21.89 in) using 10 mm stylus

RSP3-6 + RSH3-6-800

EWL 656 mm (25.83 in) using 10 mm stylus

Mounting

Magnetised kinematic coupling

Crash protection

±X, ±Y, -Z

Via break out of probe or stylus holder

+Z

Via integral bump-stop design

Change rack options

RCP TC-3

Thermally controlled change port for probe changing only

This single port unit mounts to the MRS or MRS2

RCP2

For stylus holder changing only

This single port unit mounts to the MRS or MRS2

Interface options

UCC S5

Flyers and brochures

  • Flyer:  RSP3-1 to RSP3-4 probes for REVO-2
    Flyer: RSP3-1 to RSP3-4 probes for REVO-2

    REVO-2 is the only scanning system for CMMs that simultaneously controls the motion of three machine and two head axes whilst collecting work piece data using its range of 2D and 3D tactile probes, surface roughness measurement probe and now non-contact vision probe too.

  • Flyer:  RSP3-6 extended reach probe
    Flyer: RSP3-6 extended reach probe

    The RSP3-6 provides enhanced capability for accessing deep bores and inspecting features within large parts. It is available with a range of stylus holders for applications requiring straight and cranked extensions and can be used for both touch-trigger and 2D scanning applications.

Installation and user's guides

  • User guide:  REVO-2
    User guide: REVO-2

    REVO-2 is a dynamic measuring head and probe system from Renishaw. It is a revolutionary product designed to maximise measurement throughput whilst maintaining high system accuracy.

  • Installation & user's guide:  RSP3
    Installation & user's guide: RSP3

    The RSP3 range of probes gives REVO users the ability to carry cranked stylus arrangements and enhanced capability for carrying long styli.

  • Installation & user's guide:  SFP2
    Installation & user's guide: SFP2

    The SFP2 probe system brings automated surface finish (roughness) measurement to CMMs as part of the REVO 5-axis multi-sensor measuring system.

  • User guide:  RVP
    User guide: RVP

    RVP is a non-contact vision measurement probe for use with the REVO-2 5-axis measurement system on co-ordinate measuring machines.

  • User guide:  RFP1
    User guide: RFP1

    The REVO fringe probe (RFP1) is a non-contact structured light sensor for the REVO® system offering highly accurate measurement of surface topology on an infinite positioning, 5-axis CMM platform.

Videos

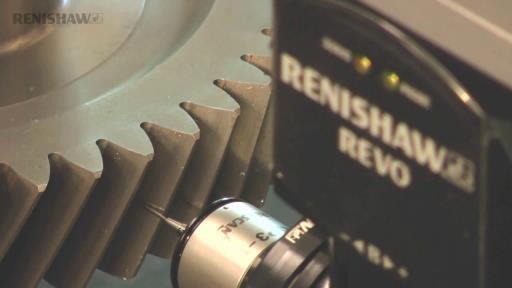

  • RSP3 scanning video
    RSP3 scanning video

    This video shows REVO with an RSP3 attached, measuring a variety of parts
