| TP200 / TP200B The TP200 / TP200B are electronic probes using strain gauge technology, which gives higher accuracy than kinematic touch-trigger probes. They combine outstanding metrology performance with superior functionality to produce a highly versatile DCC CMM probing system, with excellent productivity. Features and benefits- Excellent repeatability and precision 3D form measurement
- Rapid exchange between stylus configurations without the need to re-calibrate
- 6-way measuring capability (±X, ±Y, ±Z)
- Zero reseat errors and no lobing effect
- Suitable for intensive 'peck' or 'stitch' scanning
- Stylus reach up to 100 mm (3.99 in) GF range
- Module life of more than 10 million triggers
- Compatible with the full range of Renishaw probe heads and accessories
TP200 system componentsTP200 probe bodyStandard model. TP200B probe bodyA variant model with increased vibration tolerance. TP200 stylus moduleChoice of fixed overtravel forces: SF (standard force) or LF (low force). There is also the EO (extended overtravel) module, which has the same overtravel force as the SF but provides increased operating range and protection in the probe Z-axis. MSR1 For manual storage of modules. TP200 probe body- Incorporates micro strain gauge transducers, delivering excellent repeatability and accurate 3D form measurement even with long styli
- Sensor technology gives sub-micron triggering performance and eliminates the lobing characteristics encountered with standard probes
- The solid-state ASIC electronics within the probe ensure reliable operation over millions of trigger points
TP200B probe body- The TP200B probe has a higher tolerance to vibration
- Reduced instances of 'air' trigger generation which can arise from vibrations transmitted through the CMM or when using longer styli and faster positioning speeds
NOTE: Use of TP200B with the LF module or cranked / star styli is not recommended. TP200 stylus module- Stylus module mount via a highly repeatable kinematic joint, providing a rapid stylus changing capability and probe overtravel protection
- Three modules are available, with two different overtravel forces
- SF (standard force) module is suitable for most applications
- LF (low force) module is recommended for use with small precision ball styli or on delicate materials
- The EO (extended overtravel) module is recommended if an increased CMM speed may lead to stopping distances which exceed the overtravel range provided in the SF / LF modules. The EO module has an additional 8 mm (0.32 in) of overtravel in the probe Z axis to protect against damage to the sensor in such circumstances. Overtravel force is the same as the SF module.

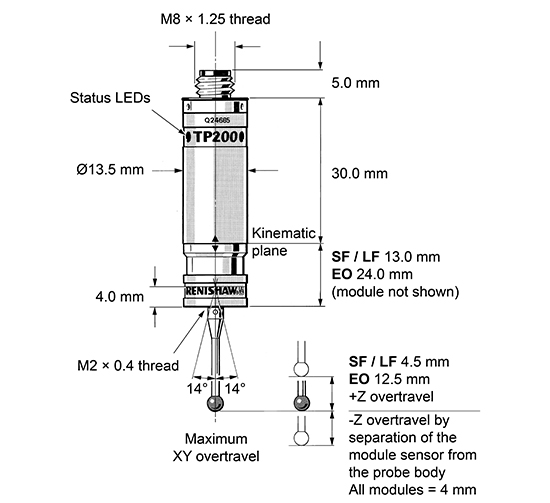

Probe maintenance - CK200 (A-1085-0016) is a specialised cleaning material supplied for the removal of contamination from the location faces of the magnetically retained kinematic couplings of the TP20, TP200 and SP25M probe systems. The frequency of cleaning should be determined by the conditions of use. Dimensions Specification| | TP200 | TP200B |
|---|
Principal application | DCC CMM where high accuracy is required | As TP200 but where 'air trigger'* events occur |
|---|
Sense directions | 6-axis: ±X, ±Y, ±Z | As TP200 |
|---|
Unidirectional repeatability (2σ µm) | | |
|---|
Trigger level 1 | 0.4 µm (0.000016 in) | As TP200 |
|---|
Trigger level 2 | 0.5 µm (0.00002 in) | |
|---|
XY (2D) form measurement deviation | | |
|---|
Trigger level 1 | ±0.8 µm (0.000032 in) | ±1 µm (0.00004 in) |
|---|
Trigger level 2 | ±0.9 µm (0.000036 in) | ±1.2 µm (0.000047 in) |
|---|
XYZ (3D) form measurement deviation | | |
|---|
Trigger level 1 | ±1 µm (0.00004 in) | ±2.5 µm (0.0001 in) |
|---|
Trigger level 2 | ±1.40 µm (0.000056 in) | ±4 µm (0.00016 in) |
|---|
Repeatability of stylus change | | |
|---|
With SCR200 | ±0.50 µm (0.00002 in) max | As TP200 |
|---|
Manual | ±1 µm (0.00004 in) max | As TP200 |
|---|
Trigger force (at stylus tip) | | |
|---|
XY plane - all modules | 0.02 N | As TP200 |
|---|
Z axis - all modules | 0.07 N | As TP200 |
|---|
Overtravel force (@ 0.5 mm displacement) | | |
|---|
XY plane - SF / EO module | 0.2 N to 0.4 N | As TP200 |
|---|
XY plane -LF module | 0.1 N to 0.15 N | As TP200 |
|---|
Z-axis - SF / EO module | 4.90 N | As TP200 |
|---|
Z-axis -LF module | 1.60 N | As TP200 |
|---|
Weight (probe sensor and module) | 22 g (0.78 oz) | As TP200 |
|---|
Maximum extension (if on PH10 series head) | 300 mm (11.81 in) | As TP200 |
|---|
| Maximum recommended stylus length (M2 styli range) | | |
|---|
SF / EO module | 50 mm (1.97 in) steel to 100 mm (3.94 in) GF | As TP200 |
|---|
LF module | 20 mm (0.79 in) steel to 50 mm (1.97 in) GF | As TP200 |
|---|
| Mounting method | M8 thread | As TP200 |
|---|
| Suitable interface | PI 200-3, UCC2-2 | As TP200 |
|---|
| Stylus module changing rack | | |
|---|
Automatic | SCR200 | As TP200 |
|---|
Manual | MSR1 | As TP200 |
|---|
Above data applies for test conditions as follows: Stylus length 50 m (1.97 in), stylus velocity 480 mm/min (1.57 ft/min) * Air trigger (or false trigger). The TP200B reduces probe triggers that may be caused by vibrations. | | Part number |
|---|
| TP7M probe kits | | | TP7M probe kit | A-1073-0121 | | TP7M probe and stylus kit | A-1073-0123 | | TP7M EP probe kits | | | TP7M EP probe kit | A-1073-0261 | | TP7M EP probe and stylus kit | A-1073-0263 | | PI 7-3 probe interface | | | PI 7-3 probe interface for TP7M | A-5726-0100 | | PI 7-3 interface card for use with PHC10-3 PLUS | A-5726-0200 | | TP200 probe | | | TP200 body / sensor only | A-1207-0020 | | TP200 probe kits | | | TP200 kit 1 (including standard force stylus module) | A-1207-0001 | | TP200 kit 2 (including low force stylus module) | A-1207-0002 | | TP200B probe kits | | | TP200B kit 1 (including standard force stylus module) | A-1207-0055 | | TP200 stylus modules | | | TP200 standard force stylus module | A-1207-0010 | | TP200 low force stylus module | A-1207-0011 | | TP200 EO (extended overtravel) stylus module | A-1207-0012 | | TP200 probe interface | | | PI 200-3 probe interface for TP1, TP2, TP6, TP20 and TP200 | A-5707-0100 | | PI 200-3 interface card for use with PHC10-3 PLUS | A-5707-0200 | | SCR200 stylus changing rack | | | SCR200 rack for automatic stylus changing with TP200 (rack only) | A-1207-0031 | | SCR200 - active 6 port change rack for use with TP200 (includes 3 × standard force stylus modules) | A-1207-0030 | | SCR200 - active 6 port change rack for use with TP200 (includes 3 × low force stylus modules) | A-1207-0070 | | TP200 accessories | | | 24 V PSU for PHC10-3 PLUS, PI 200-3 and PI 7-3 | P-EA02-0042 | | M12 location piece | M-1371-0298 |
|
