| TP7M / TP7M EP Electronic strain gauge based probe for excellent repeatability and
high precision 3D form measurement- Compatible with PH10M PLUS / PH10MQ PLUS or PH6M heads via the autojoint
connector for fast and repeatable probe changing when used with a Renishaw
autochange rack system - 6-way measuring capability (±X, ±Y, ±Z)
- Stylus reach up to 180 mm (7.09 in) using GF range
- Zero reseat errors and no lobing effect
- TP7M EP is an enhanced performance probe, capable of achieving a 3D accuracy of < 0.6 μm tested to ISO 10360 Pt 2
- TP7M and TP7M EP requires the PI 7-3 interface which has two switchable levels of sensitivity to accommodate differing applications

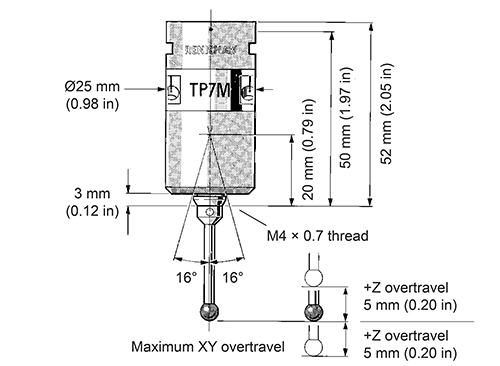

SpecificationPrincipal application | FMS and automated systems
Universal DCC CMMs
TP7M EP is particularly useful when high accuracy measurement is required |
|---|
Sense directions | 6-axis: ±X, ±Y, ±Z |
|---|
3D accuracy (test to ISO 10360 Pt 2) † | TP7M N/A
TP7M EP <0.6 μm (<0.000024 in) |
|---|
Unidirectional repeatability (2σ μm) Trigger level 1
Trigger level 2 | 0.25 μm (0.00001 in)
0.25 μm (0.00001 in) |
|---|
XY (2D) Form measurement deviation Trigger level 1
Trigger level 2 | ±0.25 μm (0.00001 in)
±0.50 μm (0.00002 in) |
|---|
XYZ (3D) Form measurement deviation Trigger level 1
Trigger level 2 | ±0.50 μm (0.00002 in)
±1 μm (0.00004 in) |
|---|
Trigger force (at stylus tip) XY plane
Z axis | 0.02 N
0.15 N |
|---|
Overtravel force XY plane
Z axis | 0.78 N
11.75 N |
|---|
Weight | 85 g (3 oz) |
|---|
Maximum extension (if on a PH10 PLUS series head) | 200 mm (7.87 in) |
|---|
Maximum recommended stylus length (M4 styli range) | 150 mm (5.91 in) stainless steel
180 mm (7.09 in) GF (carbon fibre) |
|---|
Mounting method | Multiwired autojoint |
|---|
Suitable interface | PI 7-3 |
|---|
Automatic probe change | Autochange rack |
|---|
| | Part number |
|---|
| TP7M probe kits | | | TP7M probe kit | A-1073-0121 | | TP7M probe and stylus kit | A-1073-0123 | | TP7M EP probe kits | | | TP7M EP probe kit | A-1073-0261 | | TP7M EP probe and stylus kit | A-1073-0263 | | PI 7-3 probe interface | | | PI 7-3 probe interface for TP7M | A-5726-0100 | | PI 7-3 interface card for use with PHC10-3 PLUS | A-5726-0200 | | TP200 probe | | | TP200 body / sensor only | A-1207-0020 | | TP200 probe kits | | | TP200 kit 1 (including standard force stylus module) | A-1207-0001 | | TP200 kit 2 (including low force stylus module) | A-1207-0002 | | TP200B probe kits | | | TP200B kit 1 (including standard force stylus module) | A-1207-0055 | | TP200 stylus modules | | | TP200 standard force stylus module | A-1207-0010 | | TP200 low force stylus module | A-1207-0011 | | TP200 EO (extended overtravel) stylus module | A-1207-0012 | | TP200 probe interface | | | PI 200-3 probe interface for TP1, TP2, TP6, TP20 and TP200 | A-5707-0100 | | PI 200-3 interface card for use with PHC10-3 PLUS | A-5707-0200 | | SCR200 stylus changing rack | | | SCR200 rack for automatic stylus changing with TP200 (rack only) | A-1207-0031 | | SCR200 - active 6 port change rack for use with TP200 (includes 3 × standard force stylus modules) | A-1207-0030 | | SCR200 - active 6 port change rack for use with TP200 (includes 3 × low force stylus modules) | A-1207-0070 | | TP200 accessories | | | 24 V PSU for PHC10-3 PLUS, PI 200-3 and PI 7-3 | P-EA02-0042 | | M12 location piece | M-1371-0298 |
|
