AC1 and AC2 screening

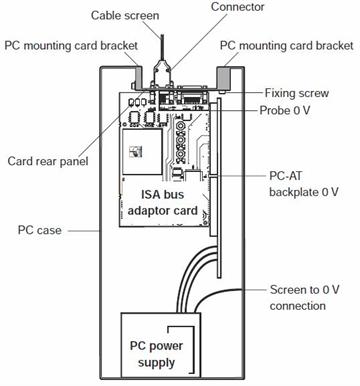

The AC1 and AC2 adopt the standard screening arrangement for IBM style PCs, shown below.

AC1 and AC2 screening

If the host PC screening is different to this arrangement, then the accuracy of the SP600/AC1/AC2 system may be impaired.
