MODUS

MODUS™ - powerful metrology software

  • Full support for I++ DME compliant metrology controllers, including Renishaw's UCC range of universal CMM controllers
  • Full compatibility with REVO
  • CAD-driven offline programming, with support for neutral formats of IGES, STEP, Parasolid® and VDA-FS
  • High quality integration with the CATIA® (v5 and v4), Siemens® NX™ (previously Unigraphics®), Pro/E® and Solidworks® CAD / CAM solutions
  • Full motion simulation including 5-axis moves
  • Native DMIS support
  • Certified mathematical algorithms
  • Powerful text and graphical reporting
  • Flexible output of results data including certified Q-DAS

MODUS software provides a powerful platform for 5-axis measurement. A configurable user interface allows native DMIS programs to be developed offline, drawing geometry, embedded dimensions and tolerance data from CAD, with full simulation. The software includes certified algorithms for feature measurement, feature construction and part alignment.

Programs can be created offline directly from CAD with on-screen probe path verification. The CMM environment, the fixture and the location of the part on the machine can all be defined, enabling full simulation of 5-axis measurement programs. This minimises CMM down-time as programs arrive at the machine ready to run, with little or no prove-out time required.

Standards foster interoperability

Building on a foundation of industry standards such as DMIS, I++ DME, DML and Microsoft® SQL Server, MODUS maximises compatibility with your existing programs and reports. Flexible reporting options include text-based and graphical reports, and results data that can be exported in a wide range of file formats, including certified Q-DAS for comprehensive SPC analysis.

The reporting capability of MODUS is extensive, including traditional CMM text reports with comprehensive user-defined formatting. Graphical reporting enables results to be displayed against the CAD model, including whisker charts or 3D form plotting for many features.

Below is a selection of screen shots taken from MODUS showing its many varied applications.

MODUS software - full blisk RSP2

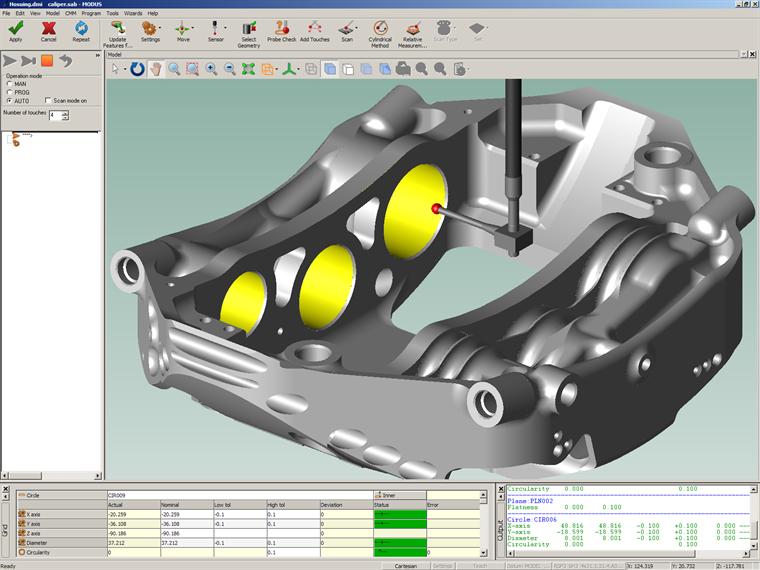

MODUS - caliper path

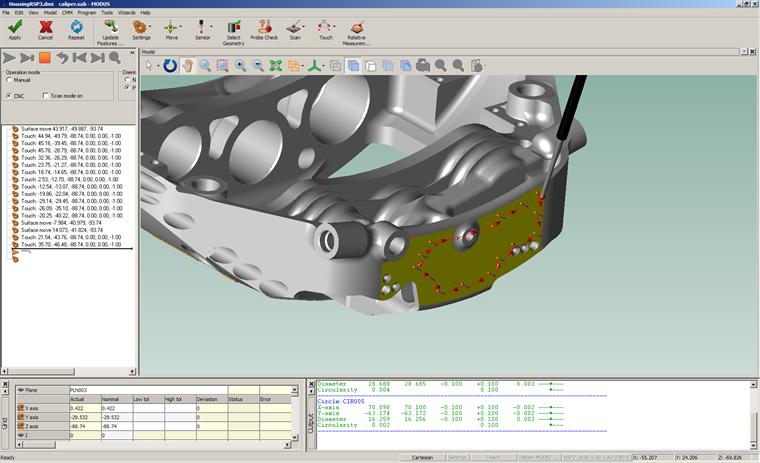

MODUS - screen caliper RSP3

MODUS - housing PH20

MODUS - housing RSP2

MODUS - housing RSP2-4

MODUS - ISO transparent1

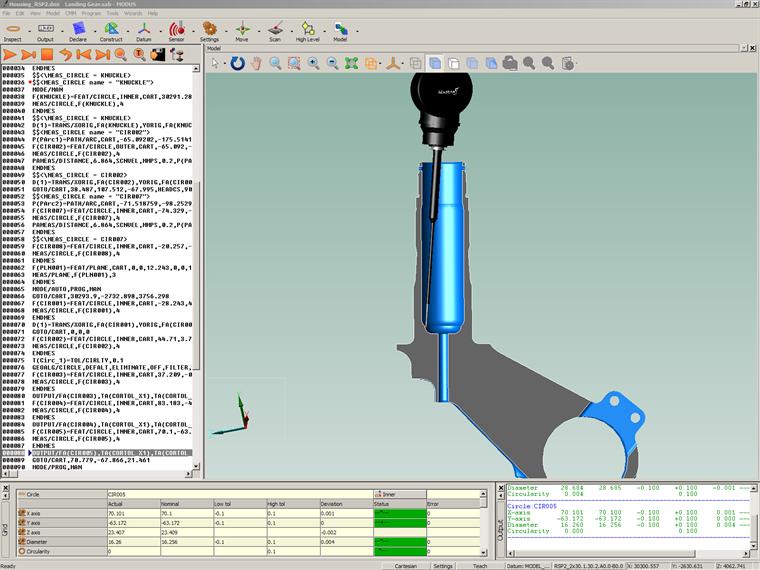

MODUS - Landing gear-1

MODUS - small housing PH20

MODUS - valve RSP2

PC requirements

  • 500 GB disk space (SSD drives and / or 1 TB recommended for high end applications)
  • Intel (R) Core i7-6700 processor
  • 8 GB RAM (16 GB recommended for large CAD models)
  • 4 USB ports (for printers, memory devices, DK2 dongle, etc.)
  • Network card required for PC connection to UCC controllers (further network cards may be required for connection to a company network)
  • Minimum 4 GB RAM NVidia Quadro M series graphics card
  • Dual monitors are recommended with 1600 × 1200 or HD 1920 × 1080 resolution

Supported operating systems

  • MODUS 1.9 will run under the following operating systems:
    • Windows 10 64-bit (for businesses, including Professional and Enterprise)
    • Windows 7 64-bit Professional, Enterprise, Ultimate (Service Pack 1 minimum)
  • To prevent possible data corruption occurring with newer hard drive types, it is recommended that you install the Windows hotfix available from this link:
  • Windows XP, Windows 7 32-bit, Windows 8, Windows 8.1 and Windows 10 Pro 32-bit are not supported.

UCCsuite

  • CNC (DCC) systems: MODUS 1.9 must be used with UCCsuite version 5.0.4 or above

Part number
MODUS online
MODUS - touch-trigger (IGES input, STEP input, collision detection, MODUS organiser)
A-5639-0001
MODUS - 3-axis scanning (IGES input, STEP input, collision detection, MODUS organiser)
A-5639-0003
MODUS - 5-axis scanning (IGES input, STEP input, collision detection, MODUS organiser)
A-5639-0005
MODUS offline
MODUS - touch-trigger offline
A-5639-0101
MODUS - 3-axis scanning offline
A-5639-0103
MODUS - 5-axis scanning offline
A-5639-0105
MODUS options
MODUS airfoil
M-5639-0008
MODUS point cloud sectioning (MPCS)
M-5639-0225
MODUS surface texture
M-5639-0226
MODUS surface texture advanced
M-5639-0227
MODUS gear
M-5639-0215
MODUS spline
M-5639-0216
MeasureMax clientM-5639-3500
MODUS upgrades
MODUS touch-trigger to 3-axis scanning upgrade
A-5639-5001
MODUS touch-trigger to 5-axis scanning upgrade
A-5639-5002
MODUS 3-axis scanning to 5-axis scanning upgrade
A-5639-5003
MODUS CAD options
VDA-FS import / export
M-5639-0010
CATIA V4 import
M-5639-0020
CATIA V4 import / export
M-5639-0021
CATIA V5 import
M-5639-0022
CATIA V5 import / export
M-5639-0023
CATIA V5 manufacturing option (includes CATIA V5 import)
M-5639-0024
Unigraphics import
M-5639-0030
Unigraphics manufacturing option (includes Unigraphics import)
M-5639-0031
Parasolid import / export
M-5639-0032
Pro/E import
M-5639-0040
Pro/E manufacturing option (includes Pro/E import)
M-5639-0041
SolidWorks import
M-5639-0050
MODUS educational
Education bundle 1 (5 seats, maintenance contract required)
A-5639-0251
Education bundle 2 (10 seats, maintenance contract required)
A-5639-0252
Education bundle 3 (20 seats, maintenance contract required)A-5639-0253
MODUS maintenance
MODUS - touch-trigger
M-5639-0501
MODUS - 3-axis scanning
M-5639-0503
MODUS - 5-axis scanning
M-5639-0505
MODUS - touch-trigger offline
M-5639-0601
MODUS - 3-axis scanning offline
M-5639-0603
MODUS - 5-axis scanning offline
M-5639-0605
MODUS airfoil
M-5639-0508
MODUS point cloud sectioning (MPCS)
M-5639-0725
MODUS surface texture
M-5639-0726
MODUS surface texture advanced
M-5639-0727
MODUS gear
M-5639-0715
MODUS spline
M-5639-0716
VDA-FS import / export
M-5639-0510
CATIA V4 import
M-5639-0520
CATIA V4 import / export
M-5639-0521
CATIA V5 import
M-5639-0522
CATIA V5 import / export
M-5639-0523
CATIA V5 manufacturing option (includes CATIA V5 import)
M-5639-0524
Unigraphics import
M-5639-0530
Pro/E manufacturing option (includes Pro/E import)
M-5639-0531
Parasolid import / export
M-5639-0532
Pro/E import
M-5639-0540
Pro/E manufacturing option (includes Pro/E import)
M-5639-0541
SolidWorks import
M-5639-0550
Educational bundle 1 annual maintenance
M-5639-0751
Educational bundle 2 annual maintenance
M-5639-0752
Educational bundle 3 annual maintenanceM-5639-0753
APEXBlade
APEXBlade (stand-alone licence)
A-5639-0220
APEXBlade (add-on to existing MODUS licence)
M-5639-0220
APEXBlade maintenance
M-5639-0720
SurfitBlade
SurfitBlade (stand-alone licence)
A-5639-0221
SurfitBlade (add-on to existing MODUS licence)
M-5639-0221
SurfitBlade maintenanceM-5639-0721
