SFP2
Enhanced access and inspection capability for integrated surface finish measurement

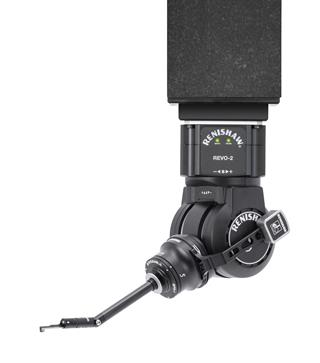

The SFP2 probe increases the surface finish measurement ability of the REVO® system, which offers multi-sensor capability providing touch-trigger, high speed tactile scanning and non-contact vision measurement on a single CMM.
Powered by 5-axis measurement technology, the SFP2's automated surface finish inspection offers significant time savings, reduced part handling and greater return on CMM investment.
The SFP2 system consists of a probe and a range of modules and is automatically interchangeable with all other probe options available for REVO, providing the flexibility to easily select the optimum tool to inspect a wide range of features, all on one CMM platform. Data from multiple sensors is automatically referenced to a common datum.
The surface finish system is managed by the same I++ DME compliant interface as the REVO system, and full user functionality is provided by Renishaw's MODUS™ metrology software.
System benefits
Unrivalled feature access
SFP2 benefits from REVO's infinite positioning and 5-axis movement, and features an integral motorised C-axis. The SFM variants offer a range of tip arrangements which, combined with the knuckle joint between module and holder, provide access to the features most difficult to reach.
Operator independent data collection
CMM programs can now include automated and operator-independent surface finish measurement. All results, including surface finish data, are recorded and stored in a single location for easy retrieval.
Greater return on investment in CMMs
Integrated surface finish and dimensional inspection can remove the need for dedicated surface measurement equipment, reducing factory footprint, part handling and associated costs.
SFP2 probe change system
The REVO-2 probe change system is designed to allow automatic REVO-2 probe and accessory changing on a CMM. For optimum metrology, SFP2 probes and holder / module configurations should be changed automatically using REVO-2 change ports (RCP TC-3 and RCP2). These ports are mounted on the modular rack system (MRS or MRS2).
Specifications
SFP2 probe
| C-axis positioning accuracy | ± 0.25° |
|---|---|
| C-axis rotation speed | Up to 90°/sec |
| Rotational capability | A-axis (from REVO-2): +120° / -110° B-axis (from REVO-2): Infinite positioning C-axis: ± 180˚ |
| Mounting (probe and holder) | Magnetised coupling |
SFM-A1 and SFM-A2 modules
| Surface finish range | 0.05 - 6.3 μm Ra |
|---|---|
| Surface finish accuracy (of nominal Ra) | ± (5% +15 nm) |
| Surface forces | Skid: 0.2 N Stylus tip: 0.003 N |
| Encoder resolution | 1 nm |
| Measurement range | 1.0 mm |
| Measurement speed | Up to 1 mm/s |
| SFM range of adjustment | ± 90° at the knuckle joint |
System features
| Probe head | REVO-2 only |
|---|---|
| Change rack | MRS2 recommended for full capability |
| Software compatibility | UCCsuite 5.2 onwards MODUS 1.8 onwards |
| Weight | SFP2 probe: 330 g SFH1 holder: 33 g SFM-A1 module: 12 g SFM-A2 module: 12 g |
| Operating temperature range | +10 ˚C to +40 ˚C |
| Storage temperature range | -25 ˚C to +70 ˚C |
| Operating humidity | 0% to 80% (non-condensing) |
| Calibration and verification artifacts | SFA1: 3.0 μm Ra sinusoid SFA2: 0.5 μm Ra sinusoid SFA3: 0.4 μm Ra sawtooth TFP: Uses LF TP20 module; PICS interface to SPA3 amplifier |
| Outputs | MODUS basic: Ra, Rms(Rq) MODUS standard surface texture: Rt, R3z, Rz, Rz1max, RzDIN, RzJIS, Rseg Rp, Rv Rpm, Rvm, Rc, Rsm MODUS advanced surface texture: Rk, Rpk, Rvk, Rmr, Rmr1, Rmr2, Rpq, Rvq, Rmq, Rvoid, Rvdd, Rvddl, Rcvx, Rcvxl |
| Sampling rate | 4 kHz |

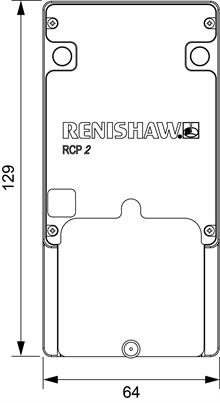

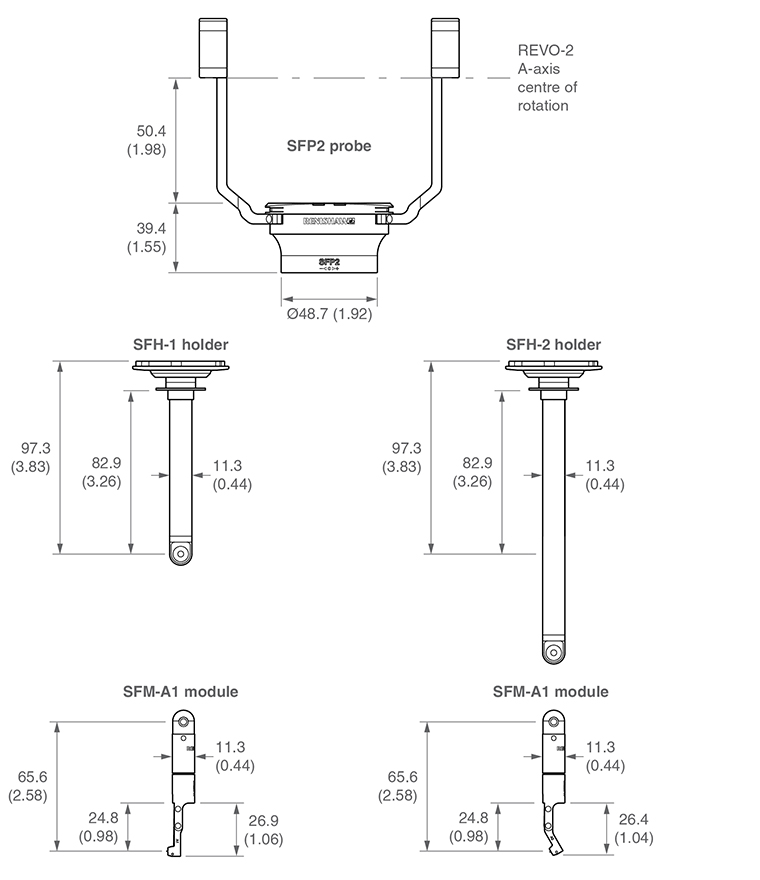

NOTE: Dimensions are shown in mm.
* NOTE: Dimensions to kinematic mounting plane.
Flyers and brochures
-
Flyer: SFP2 surface finish probe
-
Data sheet: SFM-A1
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-A2
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-B1
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-B2
Enhanced access and inspection capability for integrated surface finish measurement.
-
Data sheet: SFM-B3
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-B4
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-B5
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-C2
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-D1
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-E1
Enhanced access and inspection capability for integrated surface finish measurement
-
Data sheet: SFM-E2
Enhanced access and inspection capability for integrated surface finish measurement
-
Flyer: Calibration and capability artefacts for SFP2 surface finish probe
Installation and user's guides
-
User guide: REVO-2
REVO-2 is a dynamic measuring head and probe system from Renishaw. It is a revolutionary product designed to maximise measurement throughput whilst maintaining high system accuracy.
-
Installation & user's guide: RSP3
The RSP3 range of probes gives REVO users the ability to carry cranked stylus arrangements and enhanced capability for carrying long styli.
-
Installation & user's guide: SFP2
The SFP2 probe system brings automated surface finish (roughness) measurement to CMMs as part of the REVO 5-axis multi-sensor measuring system.
-
User guide: RVP
RVP is a non-contact vision measurement probe for use with the REVO-2 5-axis measurement system on co-ordinate measuring machines.
-
User guide: RFP1
The REVO fringe probe (RFP1) is a non-contact structured light sensor for the REVO® system offering highly accurate measurement of surface topology on an infinite positioning, 5-axis CMM platform.
