Assembling SFH holders and SFM modules

The SFH holder and SFM modules are supplied as separate items and need to be assembled before use:

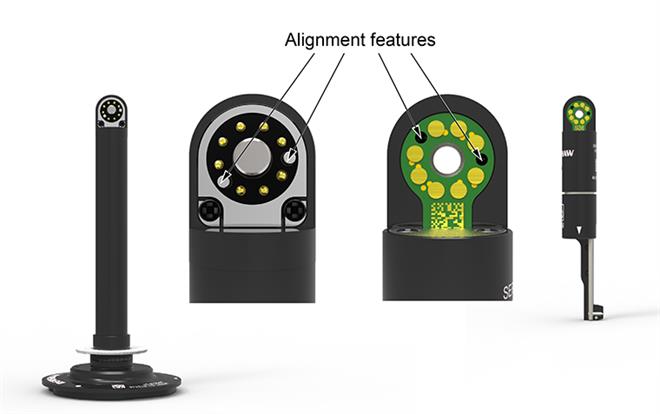

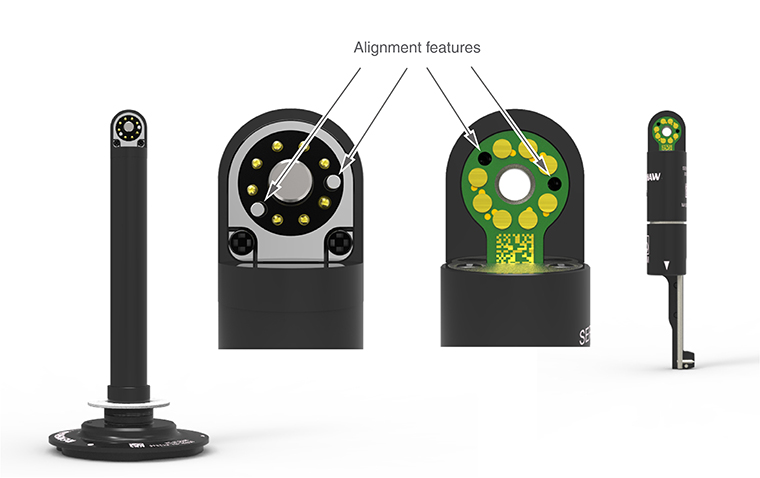

1. Bring the SFH holder and SFM module together making sure that the alignment features are correctly mated.

Assembling holder module configs_alignment marks

WARNING: Ensure alignment pins are correctly located before tightening the joint.

2. Use the supplied 2 mm hexagonal wrench to tighten the joint using a torque of 0.4 Nm to 0.5 Nm.

WARNING: Avoid overtightening this joint.

3. Use the MST setting tool to adjust the knuckle angle to the required angle (see 'Using the module setting tool').
