System interconnection diagrams

PH10 PLUS system with standard two wire touch-trigger probes

With internal PI 200-3


PH10 PLUS system with standard two wired touch-trigger probes with internal PI 200-3

PH10 PLUS system with standard two wire touch-trigger probes

With internal PI 200-3 and autochange


PH10 PLUS system with standard two wire touch-trigger probes with internal PI 200-3 and autochange

Key

Description

1

Communication connection to CMM controller RS232 or USB

3

Communication to CMM controller

4

Communication to autochange rack

5

PICS output to CMM controller

6

Probe output to CMM controller


PH10 PLUS system with standard two wire touch-trigger probes

With external PI 200-3 and autochange


PH10 PLUS system with standard two wire touch-trigger probes with external PI 200-3 and autochange

Key

Description

1

Communication connection to CMM controller - RS232 or USB

3

Communication to CMM controller

4

Communication to autochange rack

5

PICS output to CMM controller

6

Probe output to CMM contoller

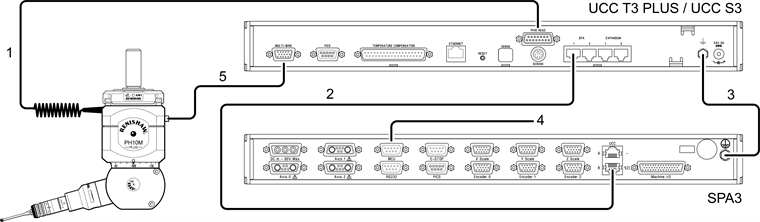

PH10 PLUS system with multiwire scanning probes


PH10 PLUS system with multi-wire scanning probes and HCU2




Key

Description

1

Comms to CMM controller

2

PICS to CMM controller

3

Multiwire to probe interface


PH10 PLUS system with multiwire scanning and touch-trigger probes with internal PI 200-3

PH10 PLUS system with multiwire scanning and touch-trigger probes with internal PI 200-3

Key

Description

1

Comms to CMM controller

2

Touch-trigger probe and PICS to CMM controller

3

Multiwire to probe interface
