CMM fixtures

Renishaw's CMM fixtures can improve the throughput, reproducibility and accuracy of your inspection process by providing quick and repeatable fixturing set-ups for your components.

Secure parts prior to measurement using our modular CMM fixtures. Our wide range of components allow you to fixture parts of almost any size, shape or material onto your CMM bed.

CMM fixtures

The Renishaw CMM fixtures range includes a wide choice of standard size base plates and an extensive selection of components with M4, M6, M8 or 1/4-20 threaded fittings. Whether you are inspecting parts for aerospace, automotive, electronics, industrial or medical applications, Renishaw can provide a complete fixturing solution for any part regardless of its size, shape or material.

Fixturing solutions can be assembled very quickly to increase throughput and avoid delays in inspection. Each fixture plate has an alphanumeric grid pattern and each fixturing component has a clearly labelled part number, enabling easy documentation of the set-up. The same set-up can be quickly and accurately reproduced for subsequent inspections; this can be especially helpful when a single kit is used in multiple applications or where there are multiple users. Identical fixturing set-ups are important to improve the reproducibility and accuracy of inspection by removing variation from the process

Flexible, repeatable and durable fixturing solutions

Build a metrology fixturing kit

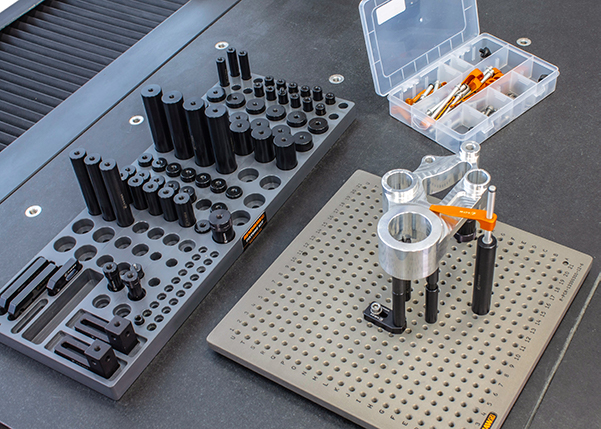

Large range of fixturing

A large range of components

Our modular CMM fixtures can be used to secure parts of almost any size, shape or material. Base plates and components are available as standard in M4, M6, M8 metric and 1/4-20 imperial thread sizes.

With a range of fixturing solutions available in our Web shop, your fixture collection can be expanded when your requirements change.

Did you know?

Custom fixtures can be designed and created by Renishaw's in-house design team. Whether you need to increase throughput by measuring multiple parts at once or have features which are difficult to reach using our modular range, we can provide a custom solution for you.

Complete a custom request form or contact us via the 'Next steps' links.

We also offer a wide range of CMM probing systems and styli.

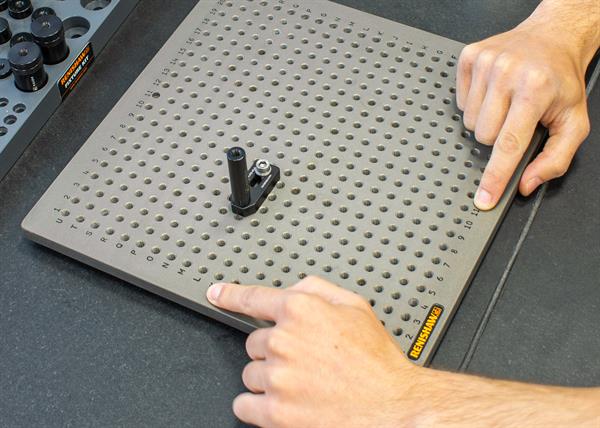

Reproducible fixture

Reproducible set-ups

Identical fixturing set-ups are important to ensure the repeatability of inspection by removing variation from the process.

Set-ups can be accurately documented and reproduced using our alpha-numerically labelled base plates and labelled fixturing components.

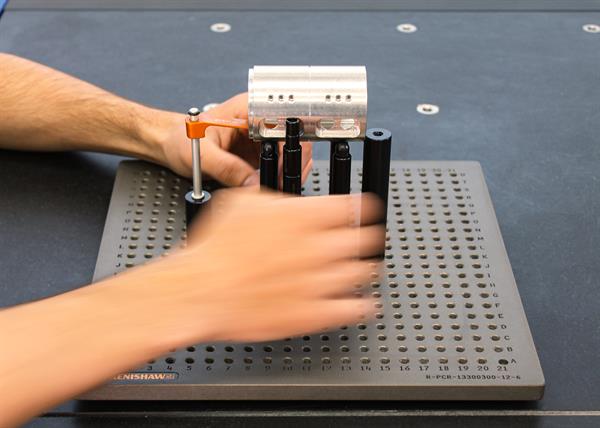

Fixture being assembled at speed

Fast assembly

Fixturing solutions can be assembled very quickly to increase throughput and avoid delays in inspection. All components are hand-tightened and require no special tools.

Fixturing components are easily adjustable and designed to hold components firmly with the minimum necessary force to avoid damage or distortion. The wide range of parts available offers flexibility when setting up a fixture to ensure a clear probe path for inspection.

A selection of different preconfigured components sets are available in imperial and metric thread sizes. Alternatively, fixturing components can be purchased individually. Take a look at the range on our Online store or contact your local sales representative.

Remove variation from the inspection process by using identical fixturing set-ups to improve the reproducibility and accuracy of inspection.
