MH20 compact probe head
- Ultra compact design to maximise CMM working volume
- Infinitely adjustable orientation to optimise access to complex parts
- Fast and repeatable integral stylus module changing to improve
productivity - TP20 compatibility ensures a wide range of stylus configurations
are easily interchanged, enhancing flexibility - Pre-fitted with a customer-specific shank to suit the CMM
Shop online

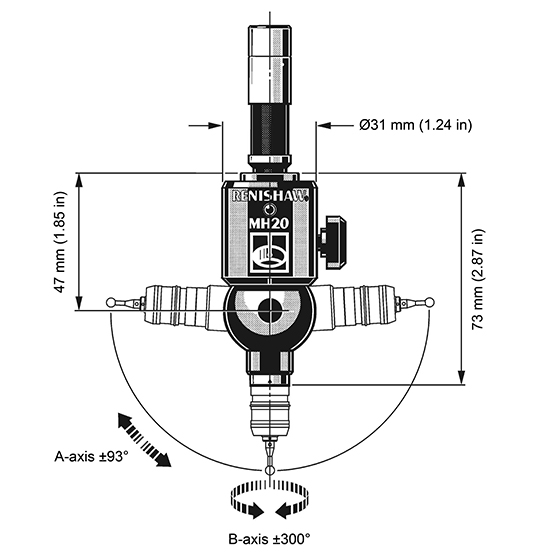

Dimensions
Specification
Head mounting | Shank to suit CMM (MS range) |
|---|---|
Probe mounting | TP20 kinematic |
Probe status indication | 1 LED |
Cable connection | 5-pin DIN socket |
Range of articulation | A-axis ±93° B-axis ±300° |
Maximum load | EM2 extended module - 94.5 mm (3.72 in) |
Weight (without shank) | 100 g (3.53 oz) |
Dual axes lock | Single rotary thumbwheel |
Operating temperature range | +10 °C to +40 °C (+50 °F to +104 °F) |
Storage temperature range | -10 °C to +70 °C (+14 °F to +158 °F) |
Suitable probe interface | PI 200-3 |
Flyers and brochures
-
Brochure: MH20 and MH20i Manual probe heads with modular flexibility
Brochure: MH20 and MH20i Manual probe heads with modular flexibility
-
Flyer: MH20 articulating probe head
MH20 articulating probe head flyer
Data sheets
-
Data sheet: MH20 and MH20i
MH20 and MH20i data sheet
Installation and user's guides
-
Installation & user's guide: MH20 and MH20i
Installation and user’s guide: MH20 and MH20i manual heads with TP20 probe module
| Part number | |
|---|---|
MH20 manual articulating probe head kits | |
| MH20 including low force probe module | A-4043-00** |
| MH20 including standard force probe module | A-4043-01** |
MH20 including medium force probe module | A-4043-02** |
| MH20 including extended force probe module | A-4043-03** |
MS1/T | MS2/T | MS3/T | MS5/T | MS7/T | MS8/T | MS9/T | MS11/T | MS18/T | |
|---|---|---|---|---|---|---|---|---|---|
MH20 (LOW) |
| ||||||||
A-4043-00 | 01 | 02 | 03 | 05 | 07 | 08 | 09 | 11 | 18 |
MH20 (STD) | |||||||||
A-4043-01 | 01 | 02 | 03 | 05 | 07 | 08 | 09 | 11 | 18 |
MH20 (MED) | |||||||||
A-4043-02 | 01 | 02 | 03 | 05 | 07 | 08 | 09 | 11 | 18 |
MH20 (EXT) | |||||||||
A-4043-03 | 01 | 02 | 03 | 05 | 07 | 08 | 09 | 11 | 18 |
