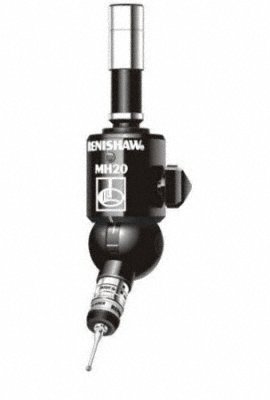

MH20 legacy manual probe head

A manually adjustable probe head with an integral TP20 kinematic stylus module mount

  • MH20Ultra compact design to maximise CMM working volume
  • Infinitely adjustable orientation to optimise access to complex parts
  • Fast and repeatable integral stylus module changing to improve productivity
  • TP20 compatibility ensures a wide range of stylus configurations are easily interchanged, enhancing flexibility
  • Pre-fitted with a customer-specific shank to suit the CMM

Dimensions

MH20 dimensions

Specification


Head mounting

Shank to suit CMM (MS range)

Probe mounting

TP20 kinematic

Probe status indication

1 LED

Cable connection

5-pin DIN socket

Range of articulation

A-axis ±93°

B-axis ±300°

Maximum load

EM2 extended module - 94.5 mm (3.72 in)

Weight (without shank)

100 g (3.53 oz)

Dual axes lock

Single rotary thumbwheel

Operating temperature range

+10 °C to +40 °C (+50 °F to +104 °F)

Storage temperature range

-10 °C to +70 °C (+14 °F to +158 °F)

Suitable probe interface

PI 200-3
