MSR1 manual storage rack

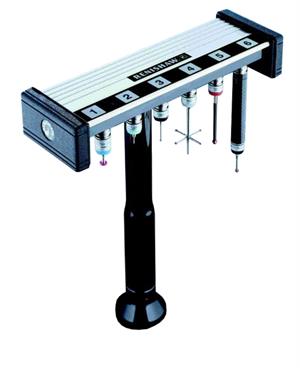

  • MSR1 Module Storage RackHolds up to six pre-qualified stylus assemblies for fitting to TP20 or TP200 probe modules
  • Provides convenient storage and protects the kinematic coupling mechanism from contamination
  • Assists the operator where manual module changing is performed and thus aids productivity improvements

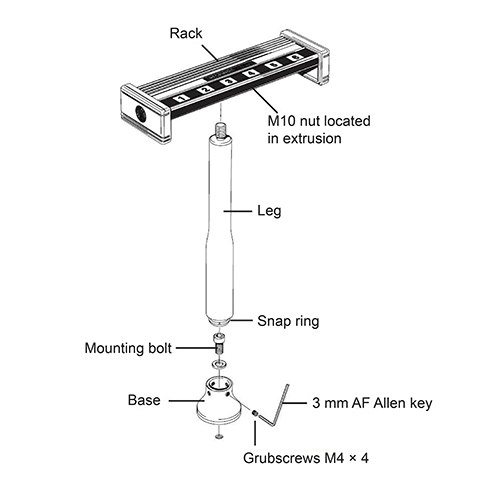

  • Can be table mounted or wall mounted using a bracket

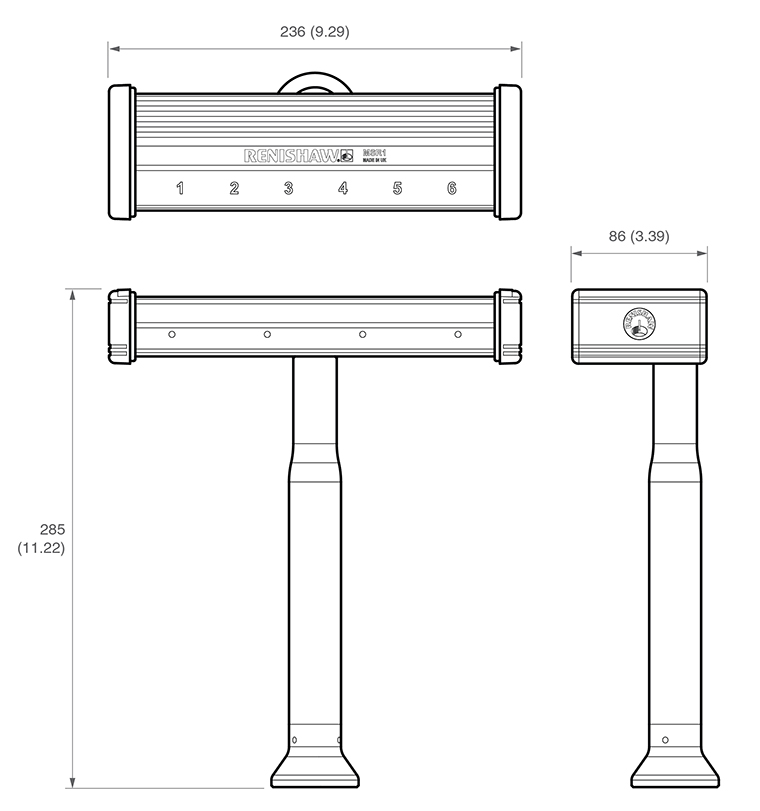

Specification (table mount version)
Overall height285 mm (11.22 in)
Depth (inc. wall brackets)86 mm (3.39 in)
Width236 mm (9.29 in)
MSR1 visual guide

Data sheets

Installation and user's guides

  • User's guide: TP20 system
    User's guide: TP20 system

    Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex parts.

 Part number
MSR1 module storage rack
MSR1 - manual storage rack for TP20 modules with wall mounting bracketA-1371-0330
MSR1 - manual storage rack for TP20 modules with leg and mounting baseA-1371-0347
M12 location pieceM-1371-0298
