Custom metrology fixtures

Custom metrology fixtures for your CMM, vision system or Equator™ gauge.

No two custom fixtures are alike

That's why our dedicated team of design engineers work with you to create a custom fixturing solution, specific to your needs.

Renishaw's engineers can provide custom fixturing solutions for your inspection and gauging systems, taking a design from concept to build. Custom fixturing applications are used across all industries from aerospace to automotive and medical to precision manufacturing.

All aspects of the specific task are taken into consideration to ensure the best solution is achieved, including:

  • How frequently the part will be measured
  • The type of material, size and shape of the part
  • Dimensions and tolerances of the part
  • Datums or orientation of the part
  • Weight and size of the fixture

You can also submit pictures, parts, prints or CAD files for our engineers to review. Complete a custom fixture request form below or contact your local sales office to discuss your custom fixturing requirements further.

No two custom fixtures are alike

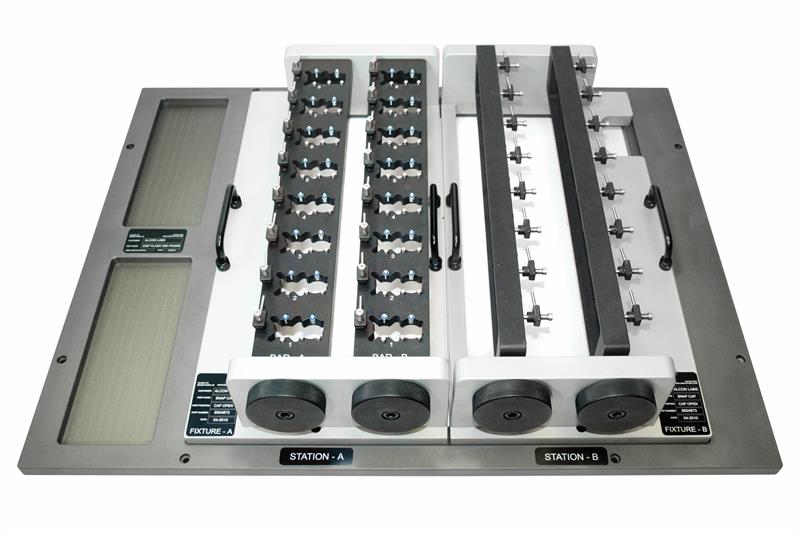

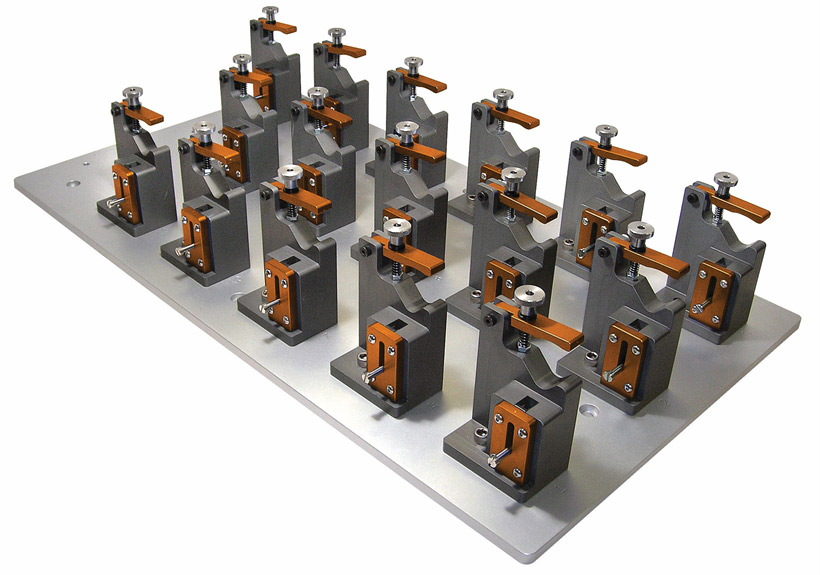

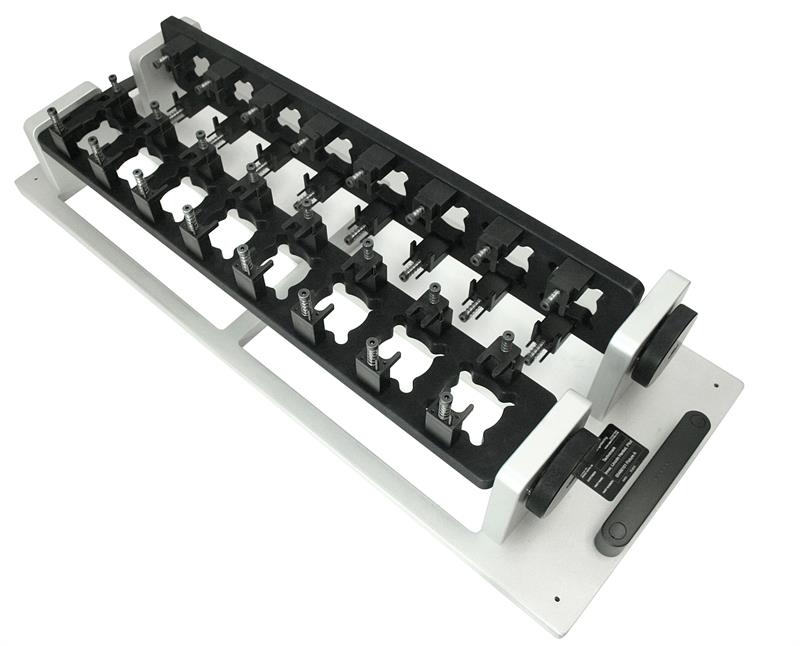

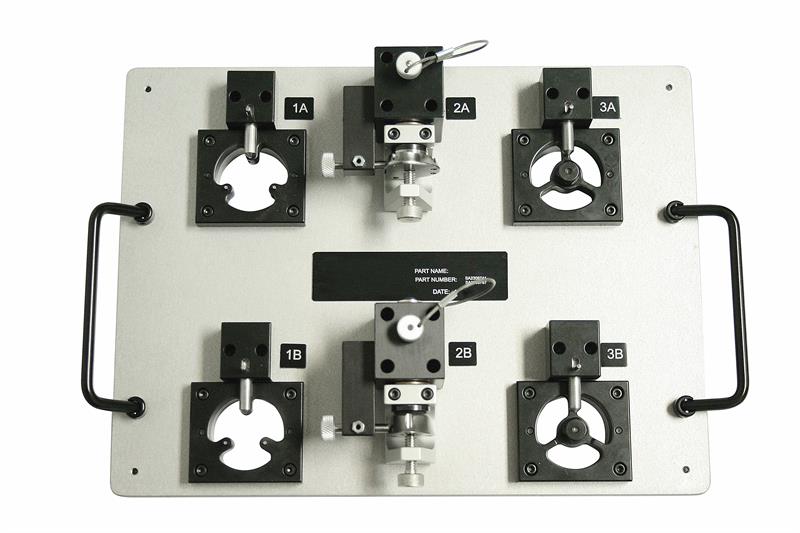

Renishaw can design a range of custom fixturing solutions, including CMM fixtures, vision fixtures, fixture plates, vision plates, custom QuickLoad™ corners for vision machines and metrology tables.

Custom application gallery
