PHS1 legacy probe head

  • PHS1 servo motorised headMeets the demanding requirements of "body in white" measurement where fine angular positioning and long reach are needed
  • 2-axis servo operated with a ±184° variable positioning capability in both axes
  • Long reach up to 750 mm (29.53 in) enables trigger probes to measure otherwise inaccessible features
  • Automatic probe changing
  • Repeatable exchange of PHS1 probe heads via KM1 / KM2
  • Easy interchange with Renishaw's PH10T PLUS / PH10M PLUS motorised heads via a PHA1 or PHA2 probe head adaptor in applications where existing parts need to be inspected without the need to re-write the programs for PHS1

System components

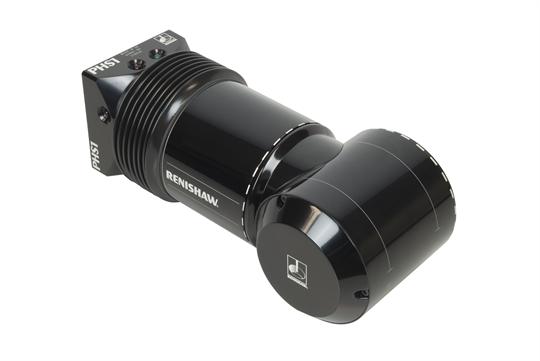

PHS1 head

This is not locked into position in the same manner as an indexing head. Instead, it is driven to approximately the required position and when a probing point is taken, the axes of the head latch simultaneously with the axes of the CMM to give accurate probe readings.

The PHS1 head is controlled directly via a PC interface card in the CMM controller, and requires full integration by the equipment supplier. It has an in-built overtravel protection unit that can be configured to stop the machine in the event of a collision.

An air supply to the head is recommended for axis motor cooling and optimum metrology performance.

HE extension arm

HE 330 extension arm

The picture on the right is of the HE 330 extension arm.

PHS1 & extension dimensions

PHA adaptors

PHA1

PHA2

PHS1 kinematic mounts

  • Enable quick fixing of the PHS head to the CMM for fast interchange with other heads
  • KM1 is designed for through quill cabling
  • KM2 is designed for round quill cabling

KM1

KM2

KM1 KM2

KM1

KM2

PHS1 interface card


Technical drawing:  Technical drawing:  PHS interface card

Dimensions

PHS1

Specification

Operating temperature

+15 °C to +40 °C (+50 °F to +104 °F)

Weight*

<3 kg (6.61 lb)

Carrying capability

Combined probe and extension mass of 1 kg (2.2 lb)

Maximum torque

2 Nm

Mechanical clutch slip

3 Nm ± 0.5 Nm

Movement speed

150 °s-1 maximum,
120 °s-1 typical

Arm rotation angle

D-axis ±184°

E-axis ±184°

Angular resolution

0.2 arc second (equivalent to 0.1 µm at 100 mm radius)

Collision protection

Signal for head protection with kinematic overtravel unit

Suitable head interface

PC interface card

Change rack system

ACR2
  • User guide:  PHS1 User guide: PHS1

    The Renishaw servo positioning head (PHS1) is a 2-axis motorised head with continuous 360° servo drive enabling the probe confi guration to be positioned at almost any angle. This makes the head ideal for use in restricted spaces and enables styli to be angled normal to a surface or aligned to the axis of a hole.

    [1.4MB]
  • Installation guide:  PHS1 Installation guide: PHS1

    The Renishaw servo positioning head (PHS1) is a 2-axis motorised head with continuous 360° servo drive enabling the probe configuration to be positioned at almost any angle. This makes the head ideal for use in restricted spaces and enables styli to be angled normal to a surface or aligned to the axis of a hole.

    [1.6MB]
  • Programming manual:  PHS servo positioning head system Programming manual: PHS servo positioning head system

    This document presents the essential information for programmers writing software to control the PHS1 servo positioning head.

    [370kB]

Presentations

Other

  • Leaflet:  Instruction leaflet: PHS PC card
    Leaflet: Instruction leaflet: PHS PC card

    The PHS1 head has been equipped with a head temperature sensing facility to allow thermal compensation. Previously, the PC card was unable to read this information but a new card has been designed to accommodate this facility.

Part number

PHS1 motorised (servo type) probe head kits

PHS1 head kit 1 (including PHS1 head, PHS1 arm kit 1 and ACR2 6 port rack kit)

A-2150-0817

PHS1 head kit 2 (including PHS1 head, PHS1 arm kit 2, KM1 kit and 2 ACR2 port pair)

A-2150-0819

PHS1 head only

A-2150-0815

PHS1 arm kits and accessories

PHS1 arm kit 1 (including 1 × 750 mm arm, 1 × 500 mm arm, 1 × HAM multiwire adaptor arm and 1 × HA-8 M8 adaptor arm)

A-2150-0816

PHS1 arm kit 2 (including 1 × 500 mm arm, 1 × 330 mm arm, 1 × HAM multiwire adaptor arm and 1 × HA-8 M8 adaptor arm)

A-2150-0827

PHS1 arm kit 3 (including 1 × 500 mm arm, 2 × HAM multiwire adaptor arm and 1 × HA-8 M8 adaptor arm)

A-2150-0840

HE750 - 750 mm PHS1 extended arm

A-2150-0063

HE500 - 500 mm PHS1 extended arm

A-2150-0064

HE330 - 330 mm PHS1 extended arm

A-2150-0078

HA-M multiwire adaptor arm for use with PHS1

A-2150-0065

HA-8 M8 adaptor arm for use with PHS1

A-2150-0066

PHS1 extension bar wooden box

A-2150-0191

ACR2 autochange rack kits (for use with PHS1)

ACR2 six port rack (including 3 × ACR2 port pair for use with PHS1)

A-1383-0004

ACR2 port pair for use with PHS1

A-1383-0003

PHS1 interface card

PHS1 interface card kit

A-2150-0824

PHS1 interface card kit (Pantec)A-2150-7294

PHS1 accessories

PHA1 - PH10 kinematic adaptor kit for use with PHS1

A-2150-0830

PHA2 - PH10 horizontal kinematic adaptor kit for use with PHS1

A-2150-0834

PHA3 - PH10MQ PLUS to KM1 quick change adaptor

A-2238-0751

KM1 - through quill cabling kinematic kit for use with PHS1

A-2150-0831

KM2 - around quill cabling kinematic kit for use with PHS1

A-2150-0832

PL104 - 30 m power cable

A-2150-0481

PL105 - 30 m comms cable

A-2150-0482

PL106 - 30 m probe cable

A-2150-0483

PL107 - 30 m overtravel cable

A-2150-0484

PHS1 positronic connectors kit

A-2150-0836
