Technical drawing: Motorised probe head (png)
File size: 151 kB
Language: English
Dimensions: 3312 x 1597 px
Part number: A-1016-7676

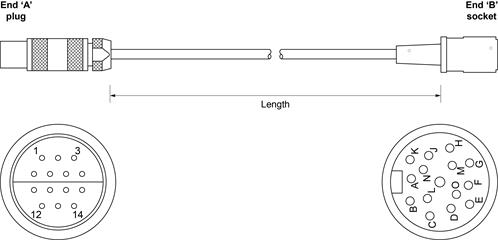

This straight cable has an in-line LEMO plug at end 'A' and an in-line Tuchel socket at end 'B'. It electrically connects Renishaw PH10T, PH10M or PH10MQ motorised probe heads to the CMM quill.
Other versions
760×366
png
