CNC Cylinder Heads case study image (jpg)

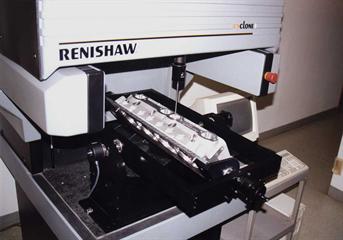

Bob Hudgins, owner of CNC Cylinder Heads, designed a special Cyclone fixture that can be rotated in A- and B-axes manually or by way of servomotors. This rotation, combined with Hudgins’ special thin styli, allows the Cyclone to probe all areas of the port. Rotary encoders register the angular position of the fixture and a digital display shows position to a thousandth of a degree.
