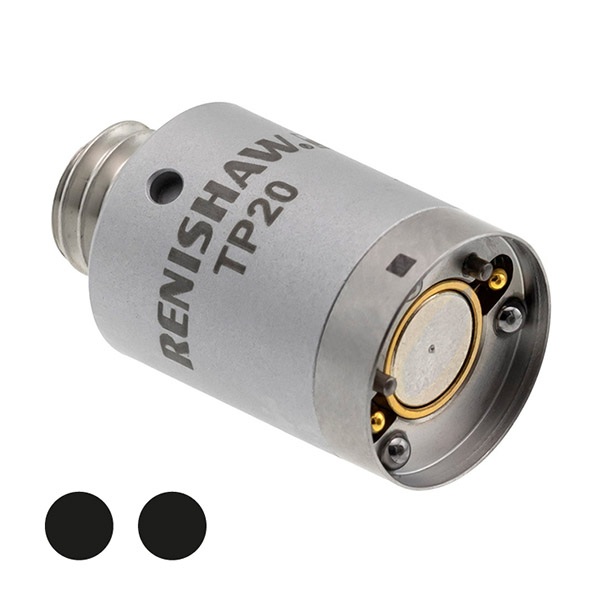

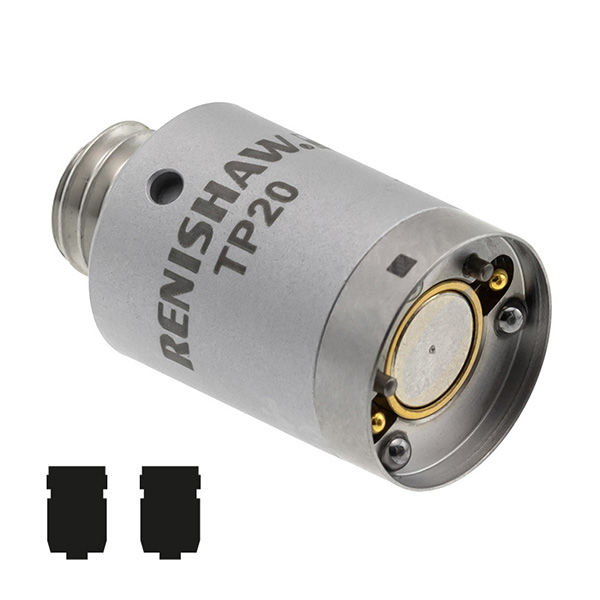

TP20 probe kit 1 (includes 2 x standard force modules)

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

The standard force probe module, identified by a black cap, is suited to the majority of applications requiring extensions up to 50 mm long. The standard force probe module can be used with the following range of styli:

• Straight styli up to 50 mm long
• Star and cranked styli up to 20 mm offset
