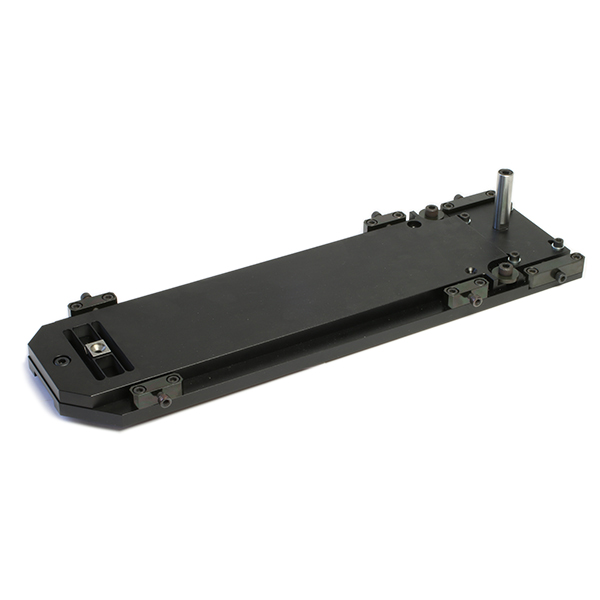

Alignment plate kit

An alignment plate has been specially designed to ease HS20 laser alignment on larger machines.  This plate, in combination with the three adjustment feet fitted to the HS20 laser head, provide the user with both horizontal and vertical plane translation and rotation adjustments.  The plate is supplied in kit format and includes a clamp block for external linear optic mounting.

Features and benefits •Easy alignment - by offering the alignment flexibility of translation and rotational adjustments to simplify the alignment process. •Stable laser mounting - providing a stable mount which can be easily fitted to the side of the machine. •Adjustable optical mount - the adjustment plate provides an optical mount which offer independent adjustment for the interferometer assembly.
