Product A-8003-4475, TB20 universal kit

Product code: A-8003-4475

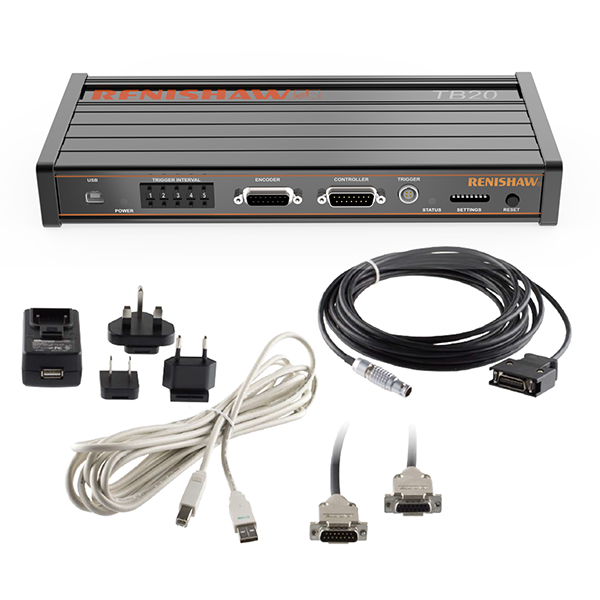

TB20 universal kit
TB20 quadrature trigger box can be used to remotely trigger the XL-80 laser. It monitors the position feedback signals between a machine's encoders and its controller and feeds trigger signals to the XL-80. This allows synchronisation of scale position or movement to the XL-80 data capture. TB20 is primarily used in applications such as leadscrew or encoder system calibration. The TB20 is mains-powered and works with TTL quadrature or analogue current loop encoders and triggers the laser measurement at regular user-defined intervals. TB20 replaces the functionality of TB10.
[0B]

TB20 universal kit

TB20 quadrature trigger box can be used to remotely trigger the XL-80 laser. It monitors the position feedback signals between a machine's encoders and its controller and feeds trigger signals to the XL-80. This allows synchronisation of scale position or movement to the XL-80 data capture. TB20 is primarily used in applications such as leadscrew or encoder system calibration. The TB20 is mains-powered and works with TTL quadrature or analogue current loop encoders and triggers the laser measurement at regular user-defined intervals. TB20 replaces the functionality of TB10.
[0B]

Price: $4,937.00

All prices are ex sales tax

Limited Availability

Longer lead times may apply.
Contact us for more information.

The TB20 quadrature trigger box can be used to remotely trigger the XL-80 laser. It monitors the position feedback signals between a machine's encoders and its controller, and feeds trigger signals to the XL-80. This allows synchronisation of scale position or movement to the XL-80 data capture. TB20 is primarily used in applications such as leadscrew or encoder system calibration.

The TB20 is mains-powered and works with TTL quadrature or analogue current loop encoders and triggers the laser measurement at regular user-defined intervals.
