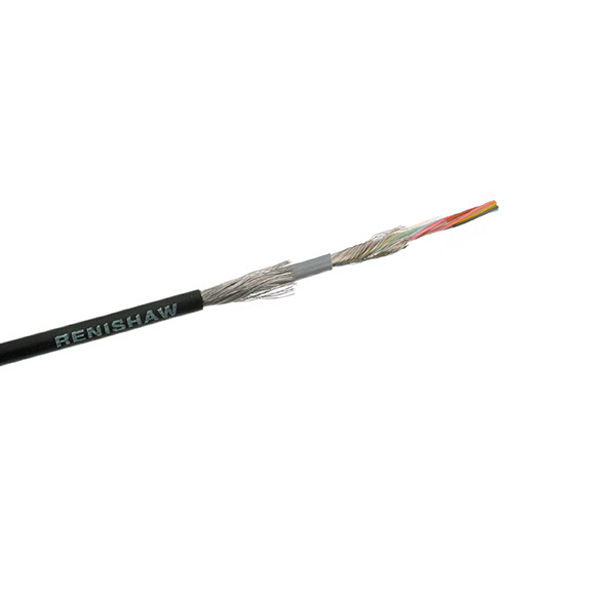

12 core encoder extension cable for TONiC™, VIONiC™, QUANTiC™, ATOM™ and ATOM DX™ encoder systems

Product code: A-9531-0237

Price: $17.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Processing request

A 12 core unterminated double-screened extension cable that allows for custom terminations to be applied at either end. 28 AWG wire size suitable for crimp, IDC and solder connection.

A unit quantity corresponds to a 1 m length of cable.  For longer lengths, please add the correct multiple to your basket (for example, 7 × A-9531-0237 will be delivered as a 7 m cable).

This cable allows an extension of up to 100 m from the encoder system to a machine controller, please contact a sales representative for further details and maximum length capability.

Technical table

Cable terminationUnterminated
Number cores12
Flex life20 million cycles @ 30 mm bend radius
Maximum length (m)100
Cable diameter (mm)4.5
Wire size (AWG)28
Cable weight (g/m)42
Cable length (m)1
