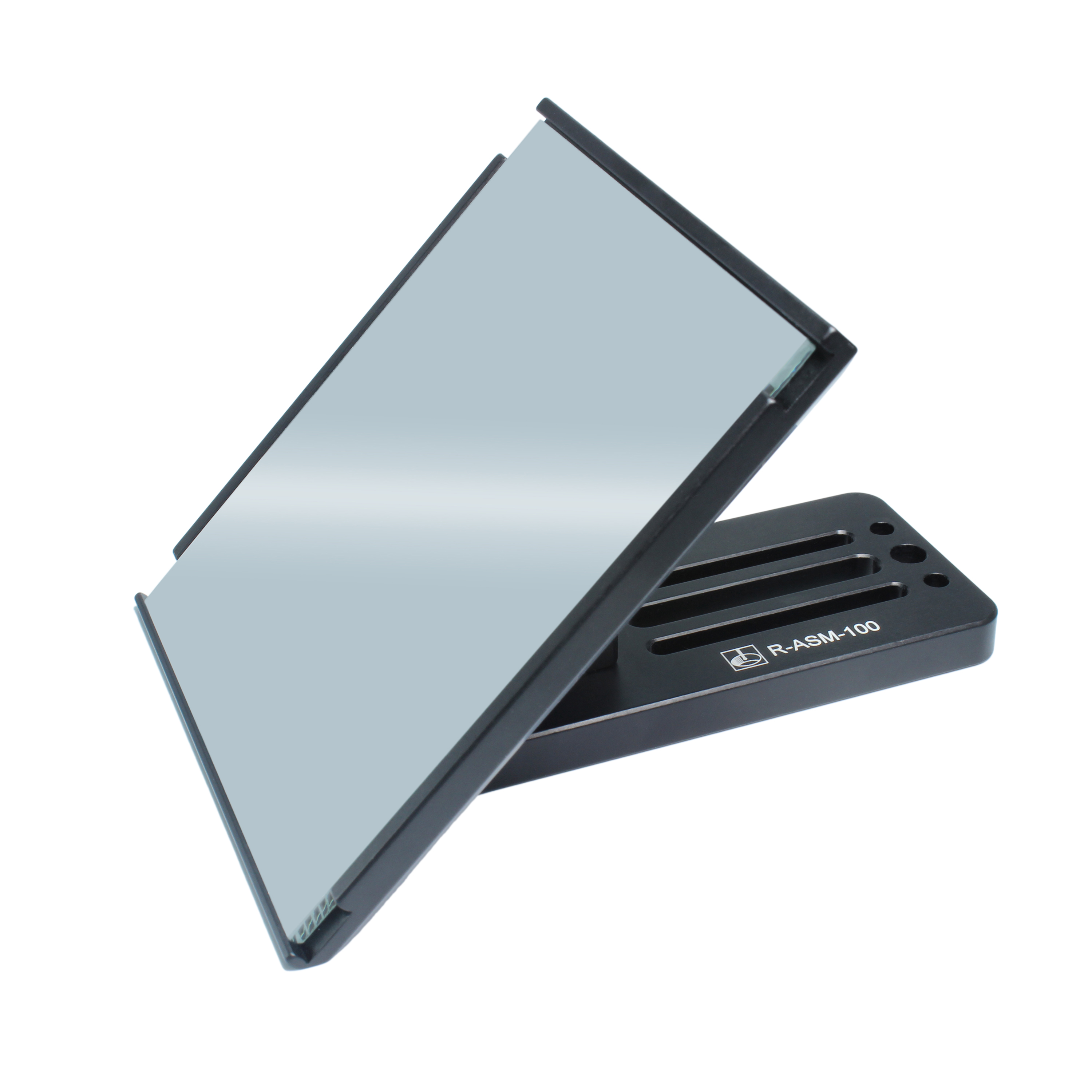

Large 45º adjustable slide mirror for use with M4, M6 and 1/4-20 components Product code: R-ASM-100 R-ASM-100 Extra large 45° adjustable slide mirrorR-ASM-100 Extra large 45° adjustable slide mirror[0B] R-ASM-100 Extra large 45° adjustable slide mirror R-ASM-100 Extra large 45° adjustable slide mirror [0B] Price: $315.00 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request This adjustable slide mirror helps to view and inspect larger features on parts, without re-fixturing. It is recommended for use on vision and multi-sensor machines. This component is made from anodised aluminium.This is a universal component suitable for thread sizes M4, M6 and 1/4-20.Note: Included: socket head cap screws and washers. Technical tableHeight (mm)87.8Length (mm)140.6Measurement systemMetricThreadMultipleWidth (mm)108 Technical documentation R-ASM-100 adjusting slide mirror 100 mm 45 Deg R-ASM-100 adjusting slide mirror 100 mm 45 Deg Technical drawing of R-ASM-100 M4, M6, 1/4-20 adjusting slide mirror 100 mm, 45 Deg [0B] Shopping security Recall your cart
