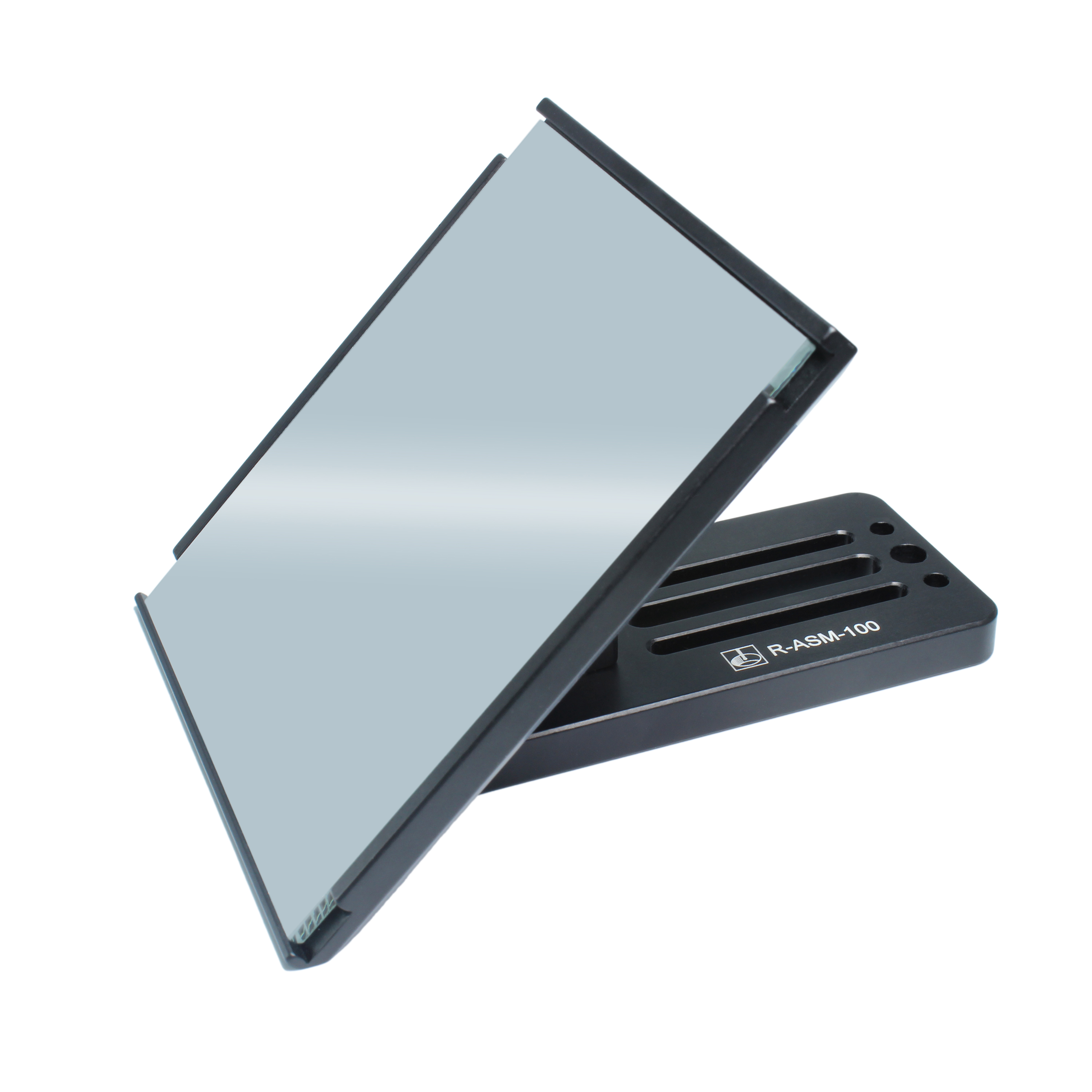

Large 45º adjustable slide mirror for use with M4, M6 and 1/4-20 components Product code: R-ASM-100 R-ASM-100 Extra large 45° adjustable slide mirrorR-ASM-100 Extra large 45° adjustable slide mirror[0B] R-ASM-100 Extra large 45° adjustable slide mirror R-ASM-100 Extra large 45° adjustable slide mirror [0B] Price: $347.00 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request This adjustable slide mirror aids viewing and inspection of workpieces, without re-fixturing. It is recommended for use on vision and multi-sensor machines. This component is made from anodised aluminium.This is a universal component suitable for thread sizes M4, M6 and 1/4-20.Note: Included: socket head cap screws and washers. Technical tableHeight (mm)89.6Height (in)3.53Length (mm)139.3Length (in)5.49MaterialAluminiumMeasurement systemMetricSlot (mm)46.3ThreadMultipleWidth (mm)108.0Width (in)4.25 Technical documentation R-ASM-100 adjusting slide mirror 100 mm 45 Deg R-ASM-100 adjusting slide mirror 100 mm 45 Deg Technical drawing of R-ASM-100 M4, M6, 1/4-20 adjusting slide mirror 100 mm, 45 Deg [0B] Shopping security Recall your cart
