Product R-C-SET-PRO-20, 1/4-20 professional clamping set

Product code: R-C-SET-PRO-20

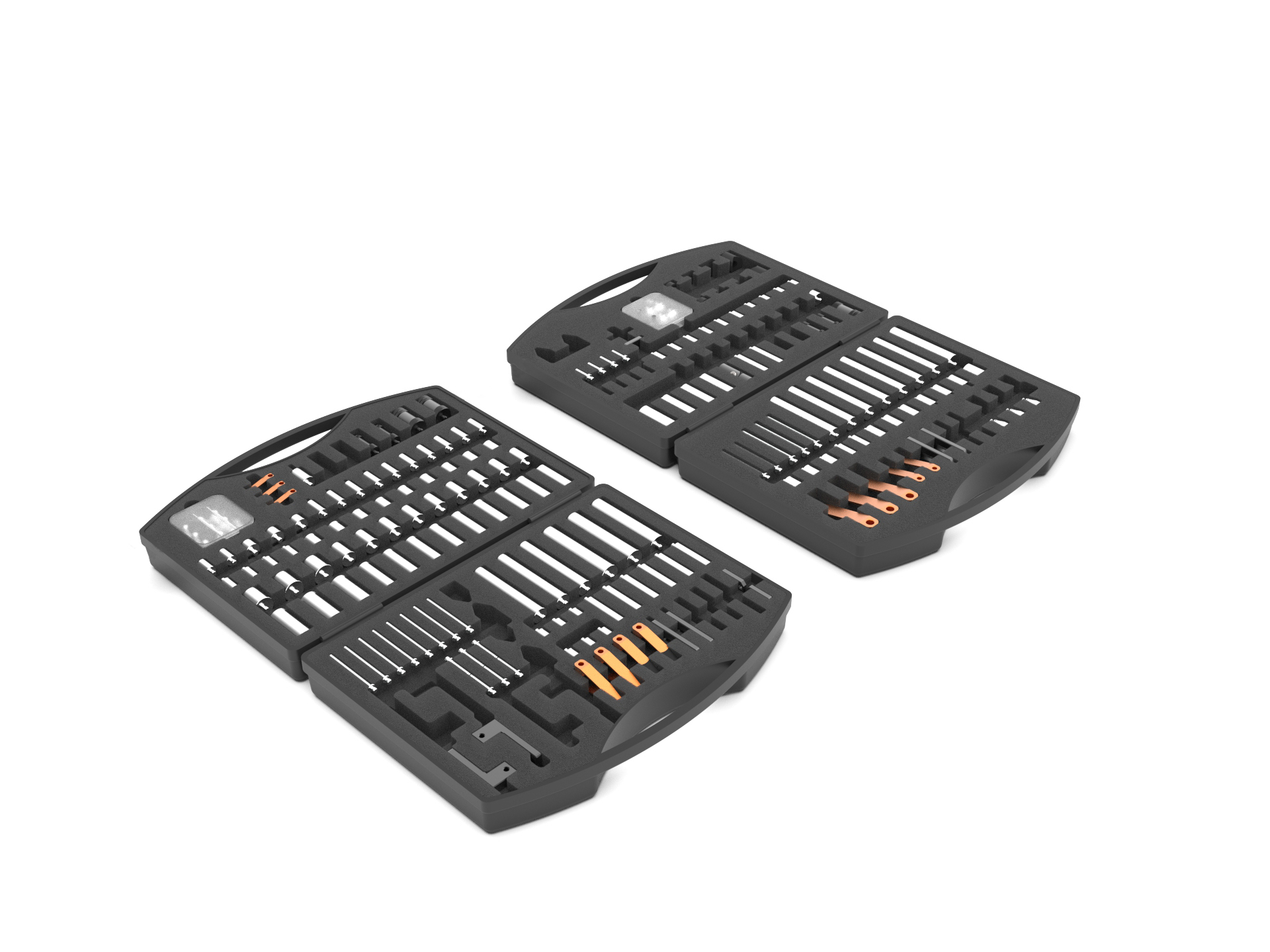

Metrology fixture professional set
Metrology fixture professional set image for use on the Online store for the following kits: R-C-SET-PRO-6, R-C-SET-PRO-8, R-C-SET-PRO-20
[0B]

Metrology fixture professional set

Metrology fixture professional set image for use on the Online store for the following kits: R-C-SET-PRO-6, R-C-SET-PRO-8, R-C-SET-PRO-20
[0B]

Price: $3,900.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

Renishaw component sets allow you to start fixturing quickly and easily. Our sets have carefully considered fixturing components for creating repeatable, fast, and precise modular fixtures.

As with our fixturing plates and metrology tables, component sets come in standard thread sizes of M4, M6, M8 and 1/4-20.

Each fixturing component set comes in a protective carry case for safe transportation and to provide storage.

Component sets are available in the following configurations: starter, basic, intermediate or professional.

You can further enhance your fixturing capabilities with a magnetic and/or standoff add-on set.

Enjoy a complimentary 12-month subscription to our innovative 3D modelling software, FixtureBuilder.

This offer is included with the purchase of every set.

Technical table

Application	CMM & Equator
Clamp type	Clamping
Measurement system	Imperial
Thread	1/4-20

Part Number	Description	Quantity
R-S-2550-20	0.25 in diameter × 0.50 in standoff	4
R-S-251-20	0.25 in diameter × 1.00 in standoff	4
R-S-5050-20	Ø0.50 in × 0.50 in standoff	10
R-S-5075-20	Ø0.50 in × 0.75 in standoff	12
R-S-501-20	Ø0.50 in × 1.00 in standoff	8
R-S-502-20	Ø0.50 in × 2.00 in standoff	8
R-S-7550-20	Ø0.75 in × 0.50 in standoff	4
R-S-7575-20	Ø0.75 in × 0.75 in standoff	12
R-S-751-20	Ø0.75 in × 1.00 in standoff	12
R-S-752-20	Ø0.75 in × 2.00 in standoff	12
R-S-754-20	Ø0.75 in × 4.00 in standoff	10
R-S-11-20	1.0 in dia. × 1.0 in standoff	4
R-S-12-20	Ø1.00 in × 2.00 in standoff	4
R-S-14-20	Ø1.00 in × 4.00 in standoff	4
R-SP-501-20	0.50 in dia. × 1.00 in pin standoff	4
R-SP-751-20	0.75 in dia. × 1.00 in pin standoff	2
R-CT-160-125-20	1.43 in tension clamp with 1.26 in post	4
R-CT-250-275-20	2.26 in tension clamp with 2.76 in post	6
R-CTT-160-125-20	1.43 in tension clamp with 1.26 in post	2
R-CTT-250-275-20	2.26 in tension clamp with rubber coated tip with 2.76 in post	4
R-CT-375-325-20	3.45 in tension clamp with 3.26 in post	3
R-RCS-75-20	Steel resting cone	6
R-RCD-75-20	POM resting cone	6
R-RPS-20	Steel resting pin	6
R-WS-37550-20	0.57 in diameter wedge stop	3
R-APJ-20	Adjustable pivot joint	1
R-AJ-50-20	Ø0.63 in adjustable aluminium jack stand	4
R-AJ-1-20	Ø1.00 in adjustable jackstand	3
R-AS-1-20	1.38 in long adjustable slide	3
R-AS-3-20	3.0 in long adjustable slide	4
R-CSPS-751-20	0.75 in diameter × 1.00 in spring pusher standoff clamp	2
R-AVP-11-20	1.00 in diameter × 1.00 in adjustable V post	2
R-TT	Fixturing assembly tool	2
