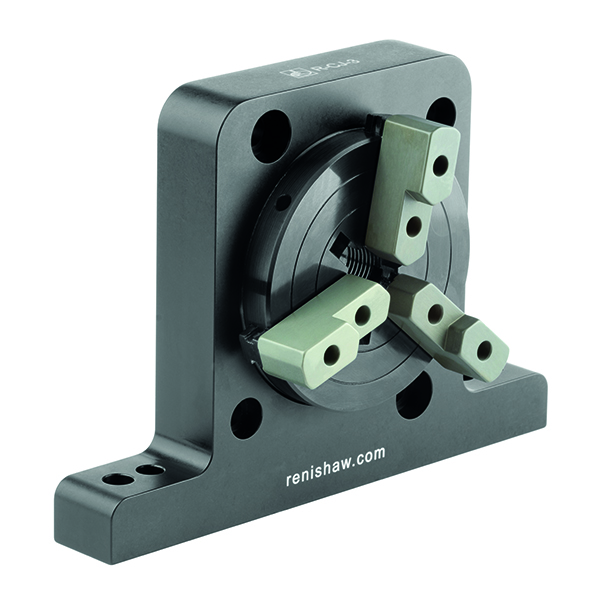

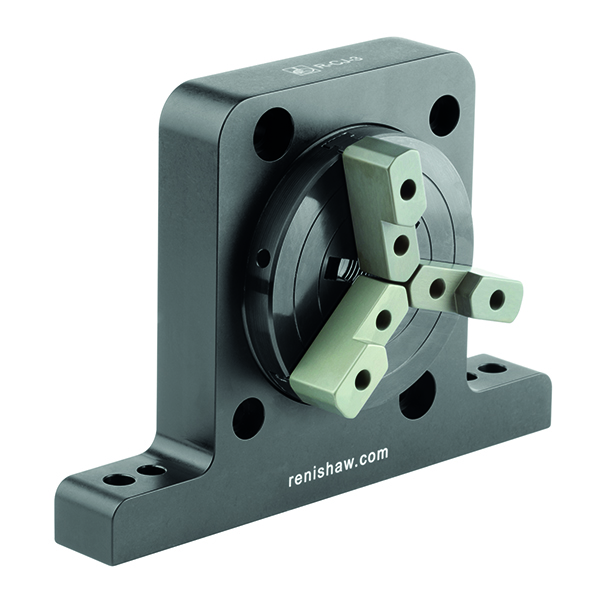

3-jaw clamp for use with M6, M8 and 1/4-20 base plates Product code: R-CJ-3 3-jaw clamp for use with M6, M8 and 1/4-20 base platesThe 3-jaw clamp is used to hold cylindrical parts, allowing the probe to measure or scan around the part without any interference. Open jaws in photo - new design 2019.[0B] 3-jaw clamp for use with M6, M8 and 1/4-20 base plates The 3-jaw clamp is used to hold cylindrical parts, allowing the probe to measure or scan around the part without any interference. Open jaws in photo - new design 2019. [0B] 3-jaw clamp for use with M6, M8 and 1/4-20 base plates The 3-jaw clamp is used to hold cylindrical parts, allowing the probe to measure or scan around the part without any interference. Closed jaws in photo - new design 2019. [0B] Price: $394.00 All prices are ex sales tax Stocked item Normally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: Product sucessfully added to View favourites Processing request This 3-jaw clamp is used to hold cylindrical parts, allowing the probe to measure or scan around the part without any interference. It can be mounted to a base plate in a vertical or horizontal position. The jaw design allows parts to be clamped from outside or inside the diameter, depending on requirements. It accommodates parts of Ø1.5 mm to Ø66 mm and is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.This is a universal component suitable for thread sizes M6, M8 and 1/4-20.Note: Included: socket head cap screws and chuck keys.Equivalent old R&R part number: CJ-3 Technical tableAdjustable (mm)1.5-66Fixture type3-jaw clampHeight (mm)127Length (mm)178Measurement systemMultipleThreadMultipleTo centre70Width (mm)50 Technical documentation N-R-CJ-3-A N-R-CJ-3-A Web shop technical drawing [0B] Related products $267.00 Centres with Ø25 mm pins for use with M4, M6, M8 and 1/4-20 fixturing components $181.00 Centres with Ø6 mm pins for use with M4, M6 and 1/4-20 fixturing components $283.00 Rotational 3-jaw clamp for use with M4, M6 and 1/4-20 base plates $153.00 Micro centres with Ø4.8 mm pins and M4 thread $263.00 57 mm × 32 mm × 32 mm mini vice with adjustable 11 mm jaws and M4 thread Shopping security Recall your cart
