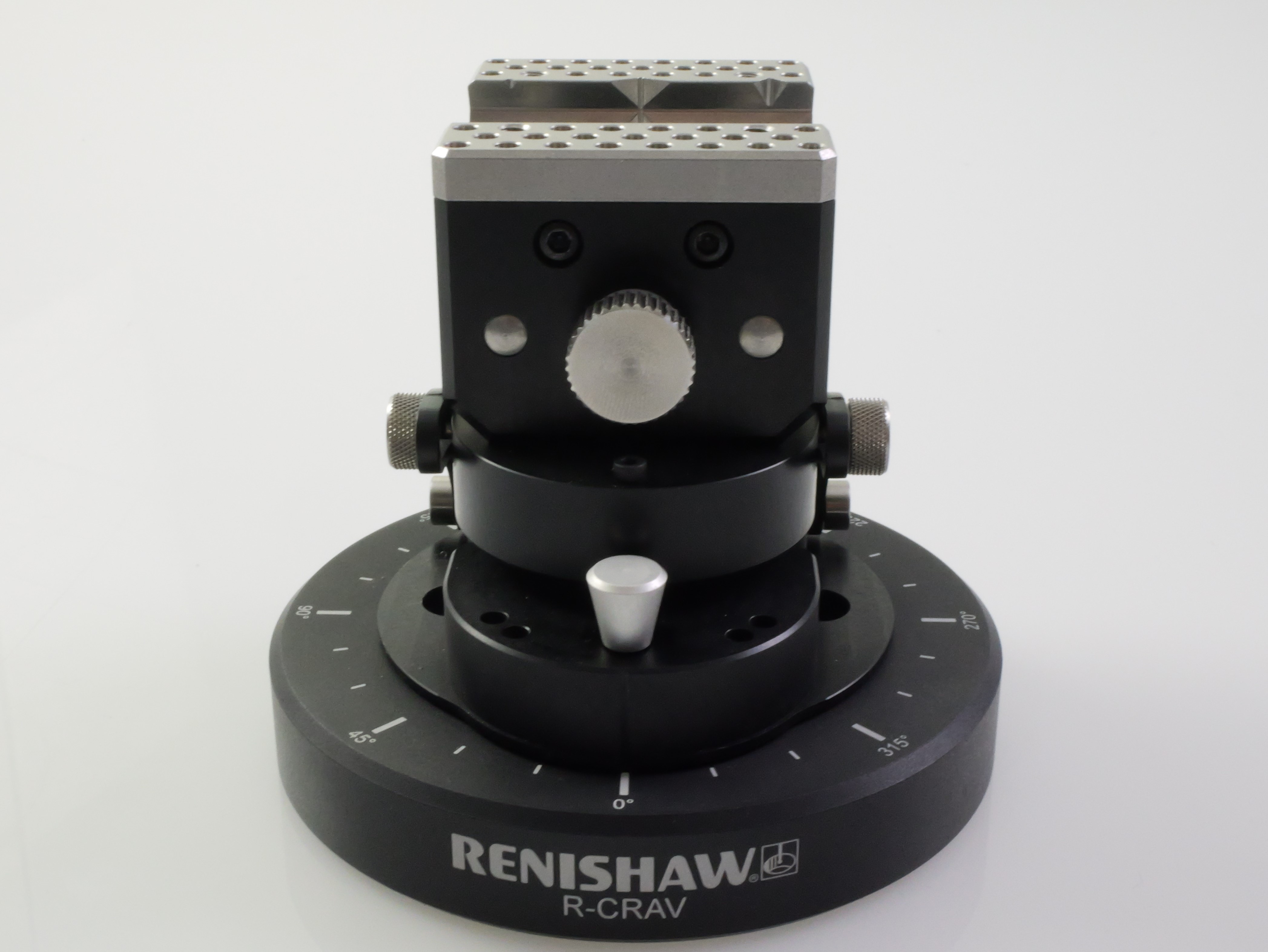

Rotational angle vice for use with M4, M6 and 1/4-20 fixturing components

The rotational angle vice provides quick, convenient staging for a variety of parts and can be mounted directly on the rails of your comparator by use of dovetail nuts*. This vice will permit your parts to be accurately held in alignment while the part you are measuring can be extended into the light path.

The vice is designed to rotate 360° and includes 15° machined graduations on the base for repeatable setting. Jaws open to a maximum of 31.75 mm making it an easy and convenient way to fixture your parts. The standard jaws are hardened steel but aluminum jaws are available as an option.

This is a universal component suitable for thread sizes M4, M6 and 1/4-20.

*Dovetail nuts not included as standard, please contact your local office
