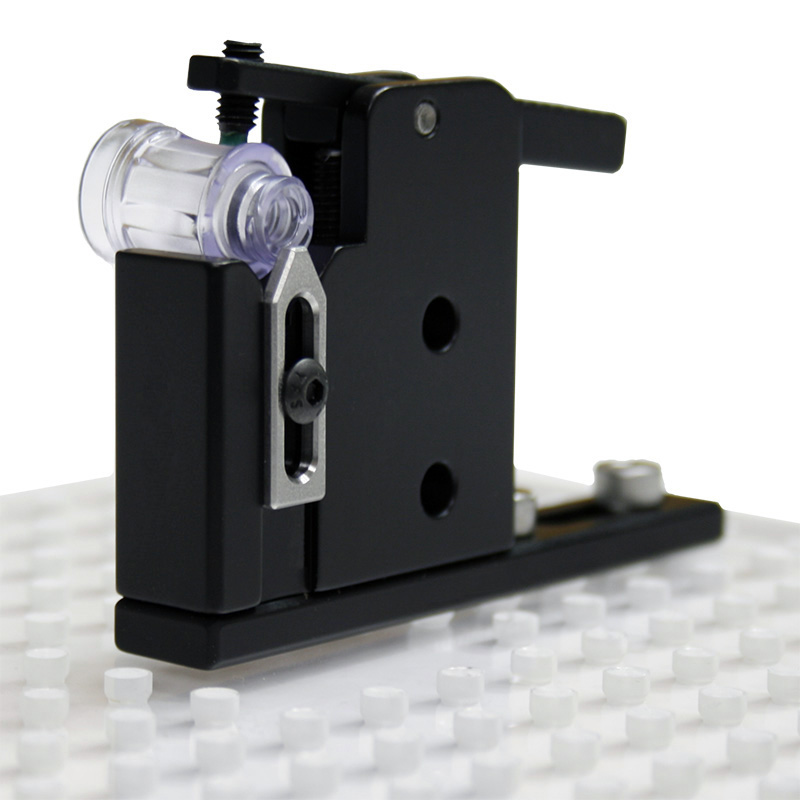

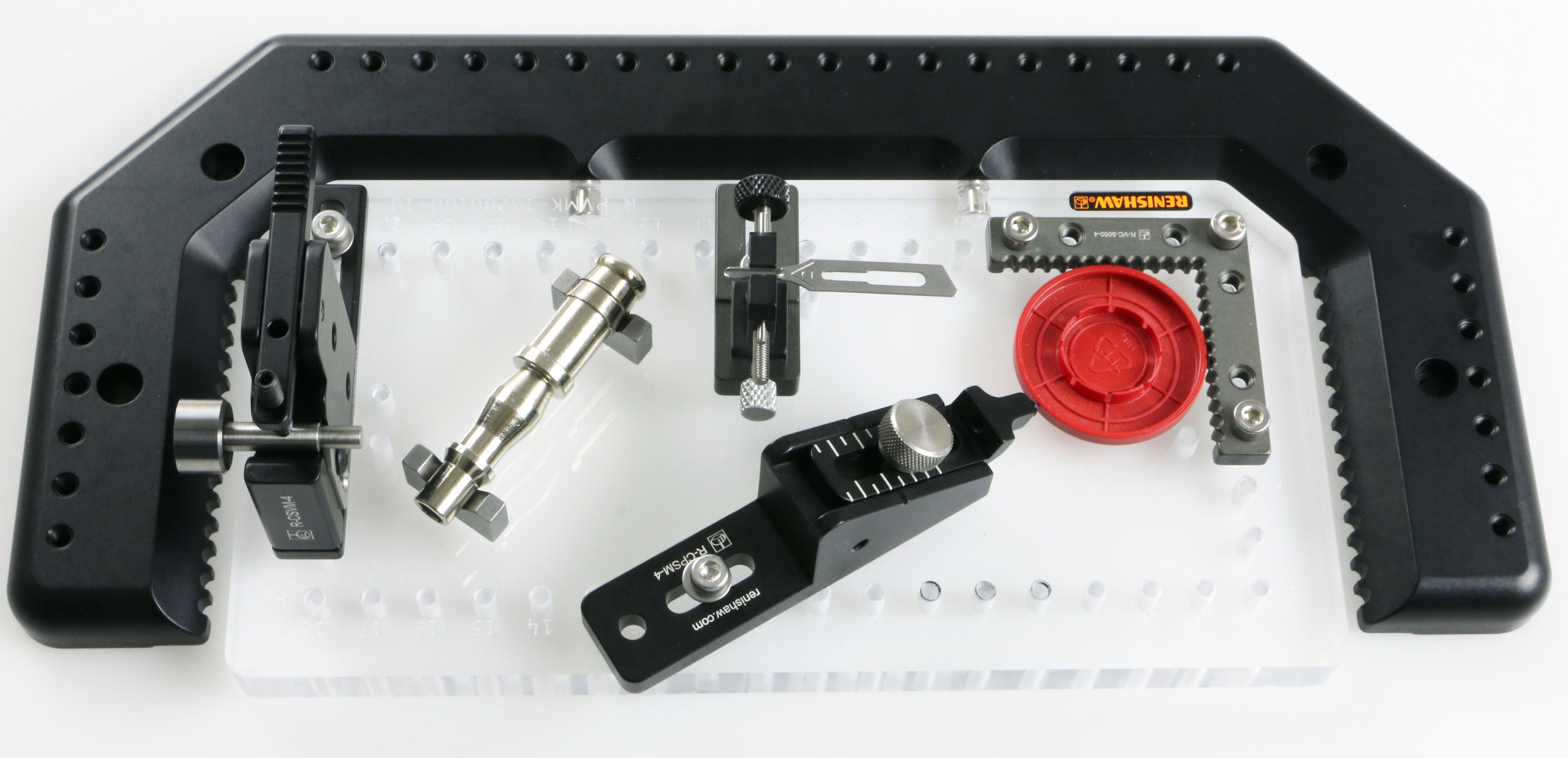

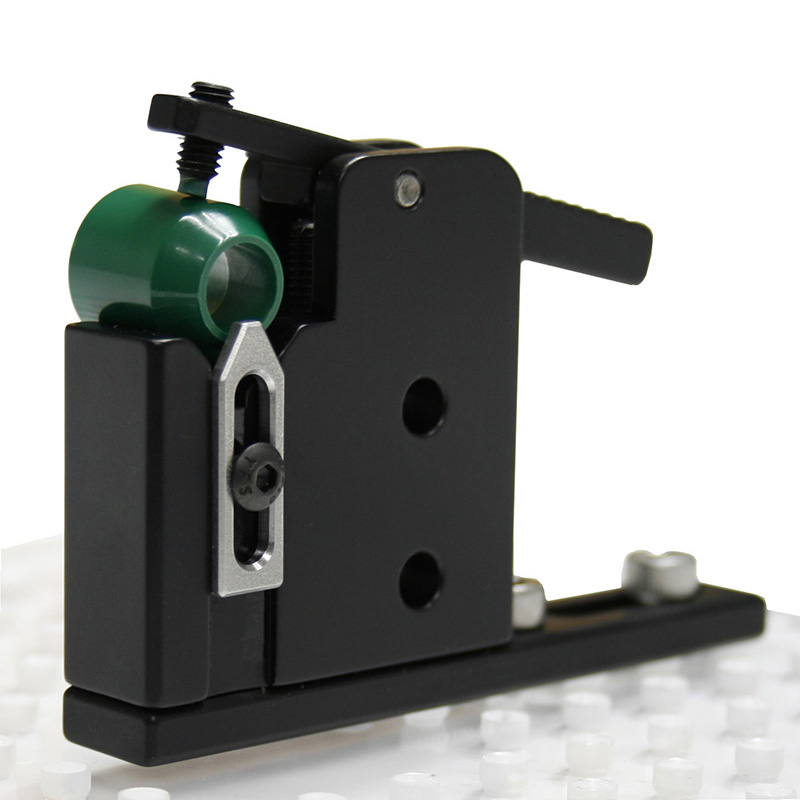

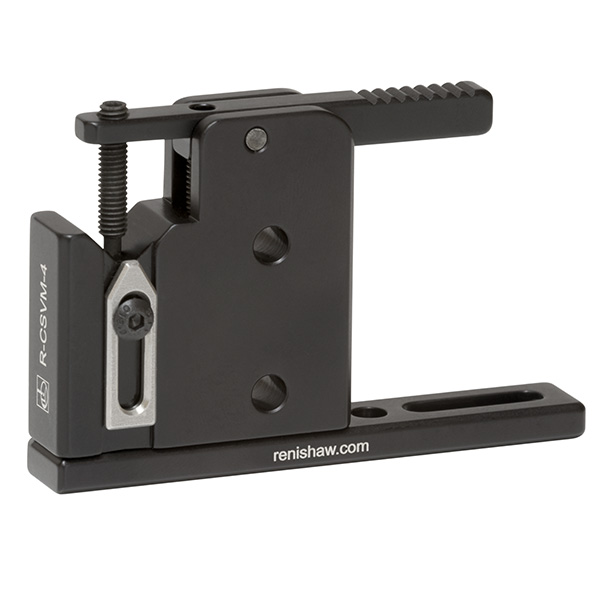

Micro V spring clamp for use with M4 fixturing components Product code: R-CSVM-4 R-CSVM-4 micro v spring clampMicro V spring clamp for use with M4 fixturing components R-CSVM-4[0B] R-CSVM-4 micro v spring clamp Micro V spring clamp for use with M4 fixturing components R-CSVM-4 [0B] Plastic part being held with the micro V spring clamp For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter components and also an adjustable end stop. [0B] Fixturing example for a micro V spring clamp For holding parts in a V with a spring arm and adjustable end stop. [0B] Keyence fixturing application image Keyence fixturing application image micro V spring clamp, micro spring pusher clamp, micro V block [0B] Price: $188.00 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter parts and also an adjustable end stop. This component is made from anodised aluminium with a stainless steel sliding stopper.Note: Included: socket head cap screws and washers. Technical tableClamp width (mm)12.4Fixture typeSpring clampHeight (mm)48.5Slot length (mm)15ThreadM4Width (mm)75 Technical documentation R-CSVM-4 R-CSVM-4 Technical drawing R-CSVM-4 for use on web shop [0B] Shopping security Recall your cart
