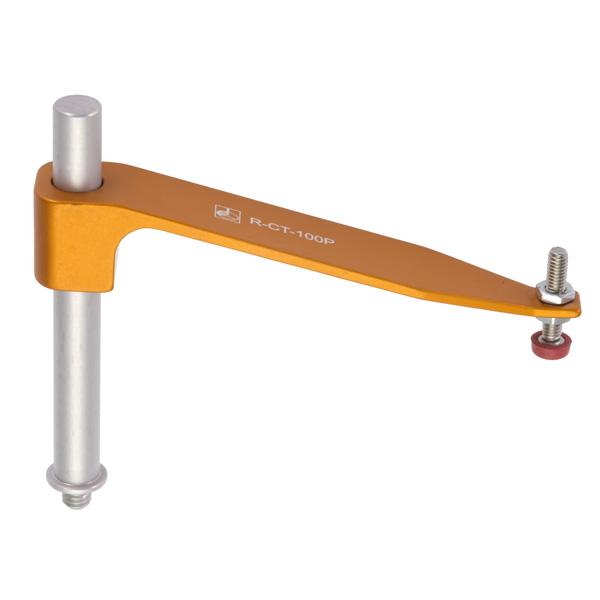

105 mm tension clamp with 83 mm post and adjustable plunger tip and M6 thread Product code: R-CT-100P-83-6 105 mm tension clamp with 83 mm post and adjustable plunger tipThis M6 tension clamp is used for the quick and easy clamping of parts onto CMM and Equator™ systems.[0B] 105 mm tension clamp with 83 mm post and adjustable plunger tip This M6 tension clamp is used for the quick and easy clamping of parts onto CMM and Equator™ systems. [0B] Fixturing example using a tension clamp with adjustable plunger tip Fixturing example for ecommerce. [0B] Price: $55.75 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request This tension clamp is used for the quick and easy clamping of parts onto CMM and Equator™ systems. It includes an adjustable rubber-tipped plunger to reach over the edge of a part and apply a clamping force inside a recess. Technical tableClamp length (mm)105Clamp width (mm)19Fixture typeTensionHeight (mm)83Plunger tip8ThreadM6Tip adjustable5-17 Technical documentation N-R-CT-100P-83-6-A N-R-CT-100P-83-6-A Web shop technical drawing [0B] Related products $61.00 105 mm tension clamp with 83 mm post and adjustable plunger tip and M8 thread $22.50 40 mm tension clamp with 30 mm post and M6 thread $22.50 40 mm tension clamp with 30 mm post and M8 thread $26.50 40 mm tension clamp with 68 mm post and M6 thread $26.50 40 mm tension clamp with 68 mm post and M8 thread Shopping security Recall your cart
