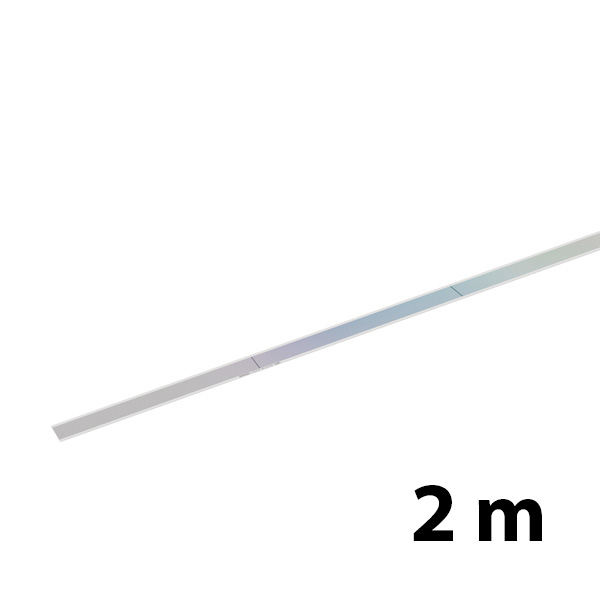

RKLC20-S linear or partial arc encoder tape scale (20 µm scale pitch for VIONiC™ and TONiC™ readheads) Product code: A-6663-0200 RKLC20-S 2 m (annotated)A-6663-0200[0B] RKLC20-S 2 m (annotated) A-6663-0200 [0B] Price: $888.00 All prices are ex sales tax Limited AvailabilityLonger lead times may apply.Contact us for more information. Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request A-6663-0200 is a 2 m (2000 mm) length of RKLC20-S incremental encoder tape scale, compatible with VIONiC and TONiC encoder readheads.RKLC20-S is a 20 µm pitch narrow low-profile stainless steel tape scale.RKLC20-S is applied with self-adhesive backing tape and mastered to the machine substrate using rigidly fixed end clamps.Can be used in linear or partial arc applications. Technical tableAccuracy (± µm)5Coefficient of thermal expansionMatches that of substrate (when end clamps used)Mount typeSubstrate masteredScale length (m)2Scale pitch (µm)20Scale typeIncremental Technical documentation RKLC incremental linear scale RKLC incremental linear scale RKLC is a robust, 6 mm wide stainless steel encoder tape scale with a thickness of 0.15 mm. This allows the scale, when rigidly fixed to a machine axis, to become ‘mastered’ to the machine substrate, matching its thermal expansion coefficient and behaviour. Differential movement between the scale and the machine is thus minimised, improving the metrological performance that can be achieved with simple thermal system compensation. [0B] VIONiC ™ RKLC20-S linear encoder system VIONiC ™ RKLC20-S linear encoder system No description available [0B] RKL partial arc RKL partial arc Installation notes for RKL partial arc scales [0B] RKL scale for partial arc applications RKL scale for partial arc applications Measuring a partial arc of rotation is made easy with Renishaw’s flexible RKL encoder scales. The flexible nature of the small cross-sectional area of these scales allows them to be wrapped around a drum, shaft or arc with a minimum radius of 26 mm. RKL scale is compatible with Renishaw’s QUANTiC™, VIONiC™, TONiC™, ATOM DX™, ATOM™ and RESOLUTE™ readheads providing a partial arc solution for a wide range of applications. [0B] TONiC ™ T103x RKLC20-S linear encoder system TONiC ™ T103x RKLC20-S linear encoder system No description available [0B] RKLC20-S Features / benefits:Quick and simple application using Renishaw's scale applicator Narrow, low-profile, highly flexible stainless steel tape scaleFor linear or partial arc applications with a minimum radius of 30 mmCustomer selectable IN-TRAC™ reference mark every 50 mmCut-to-length flexibility High solvent immunity Compatible readheads:VIONIC and TONiCAvailable online:VIONiC V2BCY30D20AVIONiC V2BCX10D08ATONiC T1030-15A For more details on this and other Renishaw encoder scales please visit our scales page Related products $35.00 Scale applicator for RKLC self-adhesive scales with TONiC™, VIONiC™ or QUANTiC™ encoder readheads $20.00 Encoder scale end clamp kit for RKL encoder scale installation $21.00 IPA wipes for all encoder system installations (pack of 20) $422.00 Guillotine for cutting RKL and RTL linear encoder scales $176.00 Shears for cutting RKL and RTL linear encoder scales Shopping security Recall your cart
