TONiC™ readhead for linear encoders (analogue output, for connection with TONiC encoder interfaces).

T1030-15A Key Features / Benefits:

• T1030-15A is compatible with RTLC20-S or RKLC20-S scale

• T1030-15A features a bi-directionally repeatable, customer selectable reference mark and dual limits

• T1030-15A features a 1.5 m cable with a termination for connection with Renishaw TONiC encoder interface

• T1030-15A is compatible with analogue TONiC interface Ti0000A00A

About the TONiC series of incremental encoders

• TONiC readheads are simple to install with wide set-up tolerances and calibration at the push of a button

• Dynamic signal control and unique filtering optics ensures low SDE and noise, maintains signal amplitude and enables improved scanning performance and positional stability

• An optional TONiC diagnostic kit is available for real‑time encoder data feedback during installation or for in-field diagnostics (contact your local Renishaw representative)

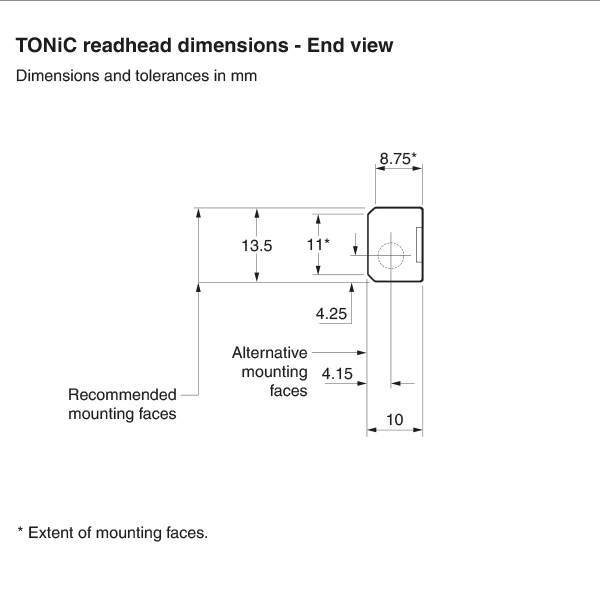

• A CAD model of the TONiC readhead is available from the Renishaw website

Compatible scales:

RTLC20-S or RKLC20-S (self-adhesive mounting)

Available online:

A-6663-0050, RKLC20-S (0.5 m)
A-6663-0100, RKLC20-S (1 m)
A-6663-0200, RKLC20-S (2 m)
A-9715-0050, RTLC20-S (0.5 m)
A-9715-0100, RTLC20-S (1 m)
A-9715-0200, RTLC20-S (2 m)

Looking for a digital output for online purchase?

VIONiC digital output encoders are available to purchase on the Renishaw web shop.

• V2BCX10D08A (1 µm)
• V2BCY30D20A (0.1 µm)
• V2BCH30D20E (50 nm)
• V2BCO30D20E (10 nm)
