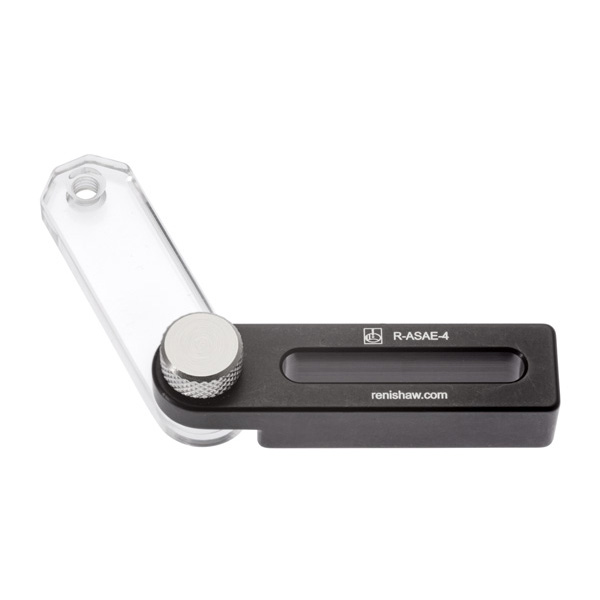

Adjustable slide with acrylic extension and M4 thread Product code: R-ASAE-4 Adjustable extension slide with M4 threadThis adjustable slide with acrylic extension is used to increase the reach of the fixturing components on acrylic fixture plates, where backlighting is required.[0B] Adjustable extension slide with M4 thread This adjustable slide with acrylic extension is used to increase the reach of the fixturing components on acrylic fixture plates, where backlighting is required. [0B] Price: $89.25 All prices are ex sales tax Call for availability +1 847 286 9953 Add to new group Before you begin to add items to your favourites please create your first group: Product sucessfully added to View favourites Processing request This adjustable slide with acrylic extension is used to increase the reach of the fixturing components on acrylic fixture plates, where backlighting is required. It is recommended for use on vision and multi-sensor machines.Note: Included: socket head cap screws and washers. Technical tableAdjustable angle (degree)190Height (mm)10Length (mm)82Slot (mm)25Spacing34.5ThreadM4Width (mm)13 Technical documentation N-R-ASAE-4 N-R-ASAE-4 Web shop technical drawing [0B] Related products $41.00 72 mm long adjustable slide with M8 thread $32.75 45 mm long adjustable acrylic slide with M4 thread $99.75 45° adjustable slide mirror for use with M4 fixturing components $137.00 Adjustable micro V for use with M4 fixturing components $39.00 Ø25 mm × 25 mm adjustable V post with M6 thread Shopping security Recall your cart
