M4 multi-hole acrylic plate, 11.7 mm x 200 mm x 200 mm

Part number: R-PV-13200200-10-4

Price: $438.00

All prices are ex sales tax

Available to order

Processing request

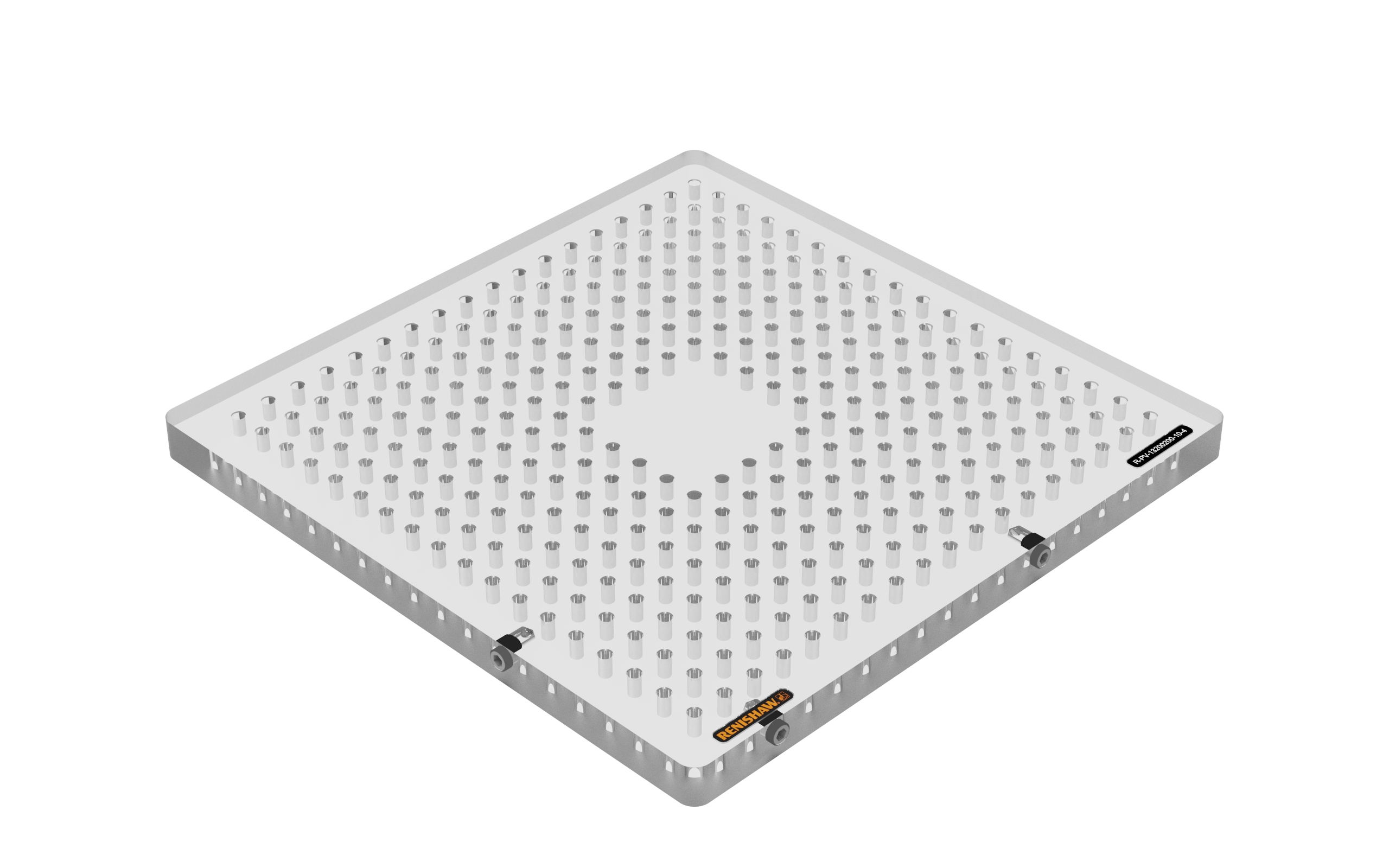

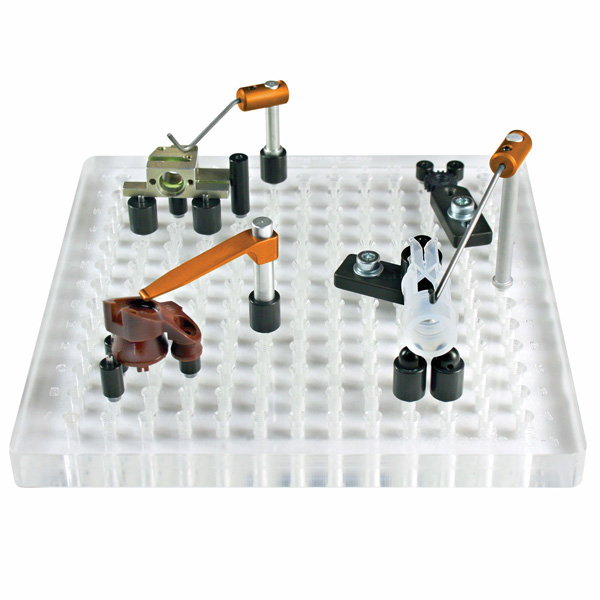

This M4 multi-hole acrylic base plate provides maximum flexibility to anyone who has parts of varying shapes and sizes that need fixturing at the same time. The M4 threaded holes are spaced at 10 mm intervals and there is a 35 mm x 35 mm clear section in the centre of the plate for an unrestricted view of small parts. Steel pins pressed into the side of the plate ensure quick, repeatable plate loading with a Renishaw quick load corner (QLC) device.

Note: Warning: Only suitable for lower left QLC, for alternative options see custom vision plate form

Technical table

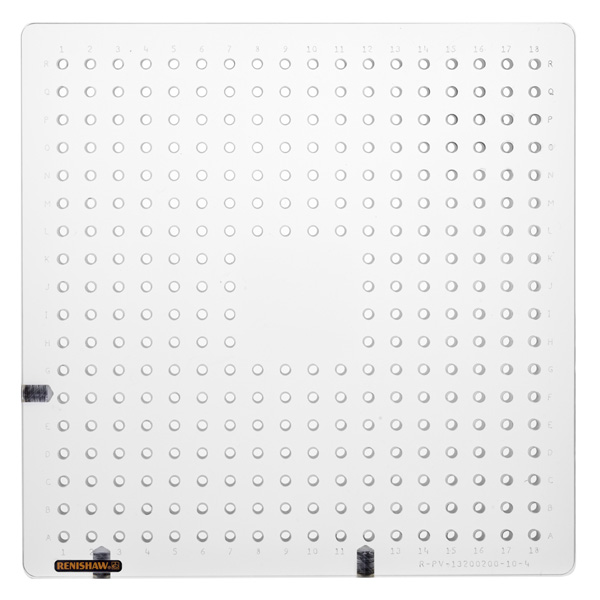

Technical drawing

Click to view drawing
